Product Description

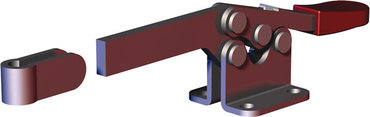

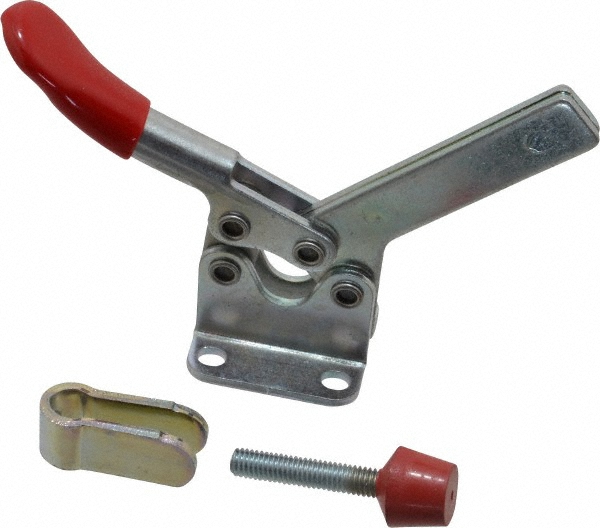

De-Sta-Co 215-S Horizontal Hold Down Destaco Toggle Clamp
Minimum overhead clearance is required for this low profile clamp
Clamp supplied with neoprene spindle
Low profile
Ergo handle
Maxmum Holding Capacity (N) 8,590
Holding Capacity (lbsf) 200
Clamp Arm Length (mm) 58.2
Clamp Arm Length (in) 2.290
Height Under Clamp Arm (mm) 25.4
Height Under Clamp Arm (in) 1.000
Maxmum Holding Capacity (N) 8,590
Clamp Bar Opening (+10°) (degrees) 87
Handle Opening (+10°) 78
Weight (kg) 0.15
Standard Material Steel
Base Mounting Style flanged
Clamp Arm Style solid bar
Handle Horizonal
SPECIFICATIONS
Centerline Distance .20
Distance From Base to Mounting Hole .19
Fits Spindle Diameter 1/4
Mounting Length 1.00
Mounting Width .88
Overall Height 1.53
Overall Length 5.50
Spindle Assembly (202208-M) 6mm-1.00 x 44mm Flat Tip
