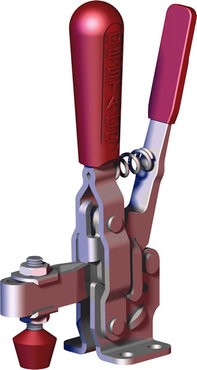

DESTACO 207-UR with Release Lever Catch U- Bar De-Sta-Co Vertical Toggle Clamp

DESTACO 207-UR with Release Lever Catch U- Bar De-Sta-Co Vertical Toggle Clamp





The world's most widely used toggle clamp.

Has the most features and options of any series in our toggle clamp line.

Supplied with neoprene spindle

With Toggle Lock Plus

Ergonomic handle grip



Maxmum Holding Capacity (N) 1,670

Holding Capacity (lbsf) 375

Clamp Arm Length (mm) 53.1

Clamp Arm Length (in) 2.140

Height Under Clamp Arm (mm) 31.8

Height Under Clamp Arm (in) 1.250

Maxmum Holding Capacity (N) 1,670

Clamp Bar Opening (+10°) (degrees) 99

Handle Opening (+10°) 57

Standard Material Steel

Toggle Lock Plus Yes

Base Mounting Style flanged

Clamp Arm Style u-bar

Handle Vertical



SPECIFICATIONS

Base Width 1.70

Distance From Base to Clamp Bar 2.09

Mount Diameter .28

Mounting Length .75

Mounting Width 1.25

Overall Height 6.90

Overall Length 4.58

Spindle Assembly M8
