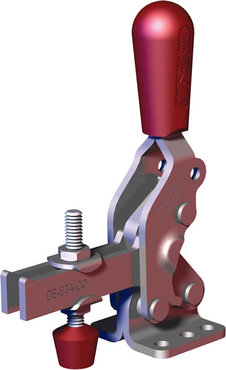

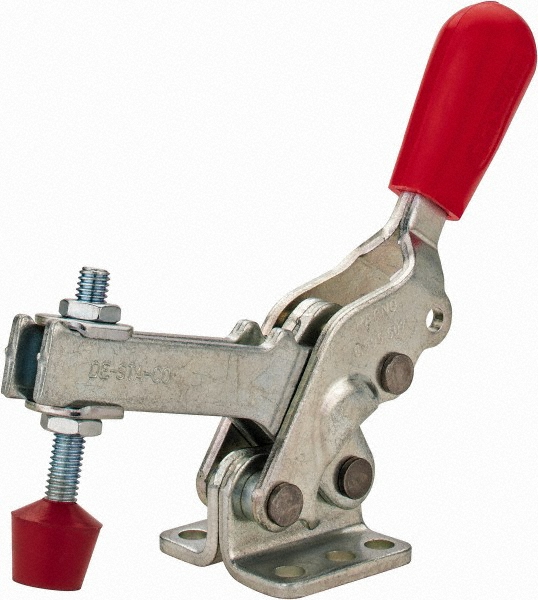

De-Sta-Co 2002-U Vertical Hold Down U Bar Destaco Toggle Clamp

De-Sta-Co 2002-U Vertical Hold Down U-Shape





MODEL: 2002-U

New generation toggle clamp with 3 times the capacity of our legacy models

Longer handle with greater hand clearance

Ergo handle

Longer clamp arm

Spindle contacts workpiece vertically



Maxmum Holding Capacity (N) 2,700

Holding Capacity (lbsf) 600

Clamp Arm Length (mm) 49.0

Clamp Arm Length (in) 1.930

Height Under Clamp Arm (mm) 24.1

Height Under Clamp Arm (in) 0.950

Maxmum Holding Capacity (N) 2,700

Clamp Bar Opening (+10°) (degrees) 75

Handle Opening (+10°) 66

Standard Material Steel

Base Mounting Style flanged

Clamp Arm Style u-bar

Handle Vertical



SPECIFICATIONS

Clamp Arm Length 1.93

Mount Diameter .22

Mounting Length .50

Mounting Width 1.60

Overall Height 4.73

Overall Length 3.29

Spindle Assembly M6
