Product Description

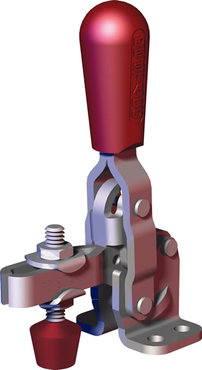

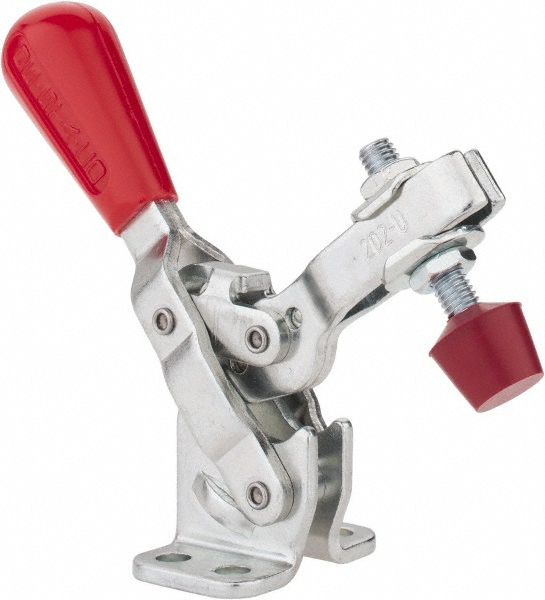

De-Sta-Co 202-U Vertical Hold Down Destaco Toggle Clamp
One of the most popular series in our line of vertical hold-down clamps.
Ideal for use in checking fixtures.
Supplied with neoprene spindle.
Ergonomic handle grip
Maxmum Holding Capacity (N) 890
Holding Capacity (lbsf) 200
Clamp Arm Length (mm) 43.9
Clamp Arm Length (in) 1.730
Height Under Clamp Arm (mm) 23.4
Height Under Clamp Arm (in) 0.920
Maxmum Holding Capacity (N) 890
Clamp Bar Opening (+10°) (degrees) 105
Handle Opening (+10°) 65
Standard Material Steel
Handle Vertical
SPECIFICATIONS
Accessories 202208-M M6 x 1.00
Bar Style U-Shape
Base Type Flanged
Base Width 1.56
Distance From Base to Clamp Bar 1.73
Mount Diameter .22
Mounting Length .50
Mounting Width 1.06
Overall Height 4.21
Overall Length 2.73
Spindle Assembly M6
Style Vertical Handle Hold Down
One of the most popular series in our line of vertical hold-down clamps.
Ideal for use in checking fixtures.
Supplied with neoprene spindle.
Ergonomic handle grip
Maxmum Holding Capacity (N) 890
Holding Capacity (lbsf) 200
Clamp Arm Length (mm) 43.9
Clamp Arm Length (in) 1.730
Height Under Clamp Arm (mm) 23.4
Height Under Clamp Arm (in) 0.920
Maxmum Holding Capacity (N) 890
Clamp Bar Opening (+10°) (degrees) 105
Handle Opening (+10°) 65
Standard Material Steel
Handle Vertical
SPECIFICATIONS
Accessories 202208-M M6 x 1.00
Bar Style U-Shape
Base Type Flanged
Base Width 1.56
Distance From Base to Clamp Bar 1.73
Mount Diameter .22
Mounting Length .50
Mounting Width 1.06
Overall Height 4.21
Overall Length 2.73
Spindle Assembly M6
Style Vertical Handle Hold Down
