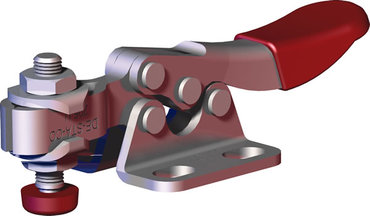

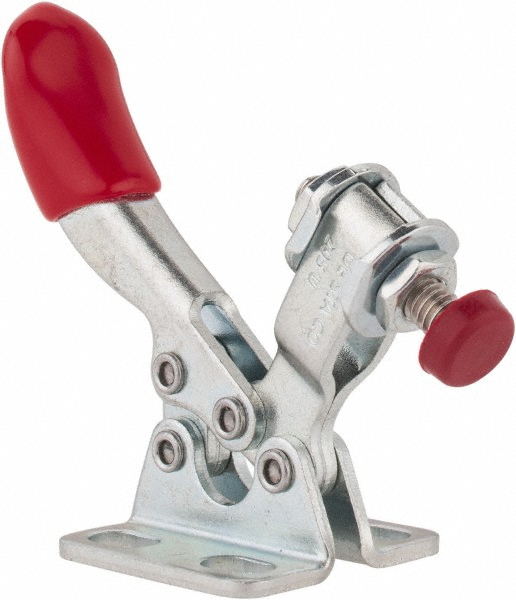

De-Sta-Co 205-U Horizontal Hold Down U-Shape Destaco Toggle Clamp
205-U
Horizontal Clamp
Used in drilling, testing, gluing and other processing applications.
Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry.
The smallest in our line of horizontal hold-down clamps.
Supplied with neoprene Ergo handle spindle assembly.
Maxmum Holding Capacity (N) 270
Holding Capacity (lbsf) 60
Clamp Arm Length (mm) 18.8
Clamp Arm Length (in) 0.740
Height Under Clamp Arm (mm) 8.1
Height Under Clamp Arm (in) 0.320
Maxmum Holding Capacity (N) 270
Clamp Bar Opening (+10°) (degrees) 90
Handle Opening (+10°) 80
Standard Material Steel
Handle Horizonal
SPECIFICATIONS
Bar Style U-Shape
Base Type Flanged
Centerline Distance .17
Distance From Base to Mounting Hole .16
Fits Spindle Diameter #10
Mounting Length .44
Mounting Width .62
Overall Height .67
Overall Length 2.65
Spindle Assembly (205208-M) 4mm-.07 x 32mm Flat Tip
Style Horizontal Handle Hold Down
