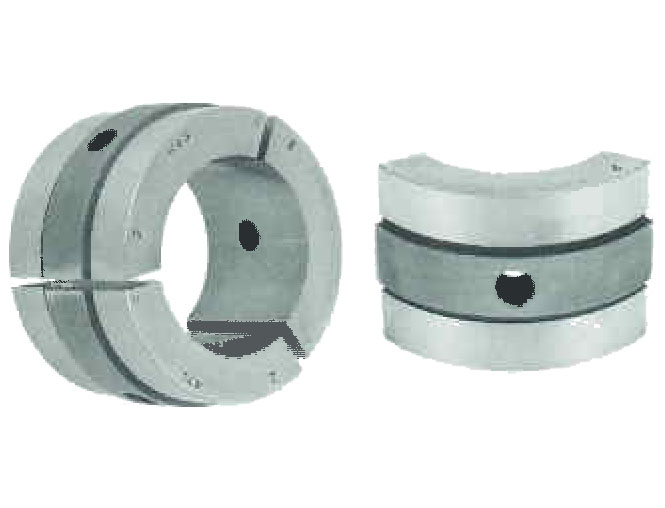

Collet Pad No 1027 WARNER & SWASEY for AJAX COLLET PAD CHUCK JAWS

•Turret Lathe Pads are commonly used with Collet Chucks and collet pad top jaws •Machinable Emergency Collet Pads available from stock •Turret Lathe Pads can be purchased in a variety of shapes, sizes and materials

Specifications

Machine Model WARNER & SWASEY # 2, # 3, #4, # 2EC, 16" EC

Machine Size 1 1/2 in

Round Collet Pad Capacity 1 1/2 in

Hexagon Collet Pad Capacity 1 5/16 in

Square Collet Pad Capacity 1 1/16 in

Master Collet Number 1369-1008 461-1002 462-1002

Master Pad Number 461-1003 Rd. 461-1023 Hx. 461-1024 Sq.
