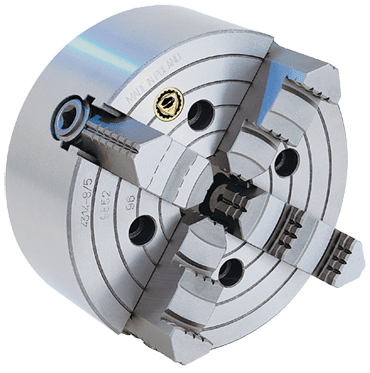

7-850-0600 4-Jaw (Solid) Independent Chuck Steel Body Plain Back 6in, Type 4306-160, Bison-Bial
Over 50 years of Quality European Manufacturing have made BISON the number one choice for Lathe Chucks. Whether scroll, independent or collet, these chucks are not just a exceptional value. Offered with direct spindle mounting or special application back plates, Bison Chucks are easy to install and maintain.
When it comes time for a New Chuck, Give the Guys at Ajax a call. And Let us help you get Your Lathe UP and Turning!
Ajax Sales and Service: 1 (800) 543-5998
TECHNICAL DATA
Chuck Diameter D in 6
Chuck Body Steel
Chuck Jaws solid
Maximum Speed RPM 3200
Weight lb 9.0
Load Capacity lb 550
Hole Diameter d in 1.6535
Max Hole Enlargement d1 in 1.8504
E in 3.2500
F in 2.7500
C in .0984
H in 1.6929
h1 in .7874
Chuck Mounting Bolts Thread 3/8 - 16
Chuck Mounting Bolts L 1-3/4
Chuck Mounting Bolts Qty 4
d1 min in 0.315
d2 max in 6.2992
d3 Chuck Thru Hole in 1.6535
Manufacturer Model Number 4304
Accessories and Parts
7-890-906 Wrench, 5&6in 4-Jaw Indep.Chuck
7-897-514 Mounting Bolt, 3/8-16, 1-3/4
7-870-306 Back plate,Rough,6in Adapter/Indep
7-878-0540 Back Plate,5in D1-4,Semi-Fin for 3-8"Ch.
7-890-106 Hard Solid Rev.Jaws, 5 & 6in 4 Pc Set
7-890-606 Operating Screw-Part for 5&6" Indy Chuck
7-890-706 Thrust Bearings for 5&6in Indep.Chuck
7-909-3055 C Fixture Adapters,Soft - 5in
7-890-1060 Hard Solid Rev.Jaw, 5 & 6in 1 Pc
Spare parts and jaw options are readily available, an Ajax Lathe Chuck Technician is available to assist you.
