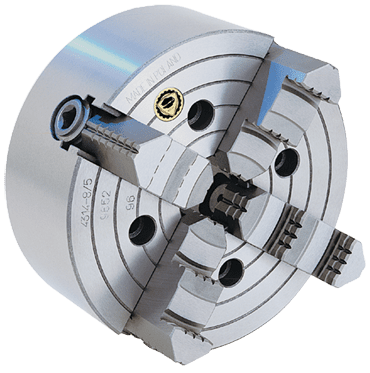

Product Description
• Can be mounted directly on 3/6 slot rotary tables or on a base plate when the rotary table has 3/6 or 4/8 T-slots
• Base plates are designed for use with all rotary tables and other devices where back mounting chucks cannot be used
• These chucks can also be mounted to a rough machined backplate, but will require machining of bolt hole patterns and projections for finished assembly
Technical Specifications
Top Jaw Height 2.087
Mount Recess Depth .197
Mount Recess 7.874
Size of Mounting Bolts (6) 1/2-13 x 3.54
Mounting Bolt Radius 8.818
Number of Jaws 4
Class Lathe Chucks & Accessories
Chuck Size 10
Hole Size 2.992
Weight 52 lbs
Type Front Mounting Semi-Steel Self-Centering Scroll Chuck
Body Width 3.346
Brand Name Bison
Mount Plain Back
Designed for use with Rotary Tables where Back Mounting Chucks cannot be used
Two-piece hard reversible jaws
Scroll and jaws are hardened and ground
• Base plates are designed for use with all rotary tables and other devices where back mounting chucks cannot be used
• These chucks can also be mounted to a rough machined backplate, but will require machining of bolt hole patterns and projections for finished assembly
Technical Specifications
Top Jaw Height 2.087
Mount Recess Depth .197
Mount Recess 7.874
Size of Mounting Bolts (6) 1/2-13 x 3.54
Mounting Bolt Radius 8.818
Number of Jaws 4
Class Lathe Chucks & Accessories
Chuck Size 10
Hole Size 2.992
Weight 52 lbs
Type Front Mounting Semi-Steel Self-Centering Scroll Chuck
Body Width 3.346
Brand Name Bison
Mount Plain Back
Designed for use with Rotary Tables where Back Mounting Chucks cannot be used
Two-piece hard reversible jaws
Scroll and jaws are hardened and ground
