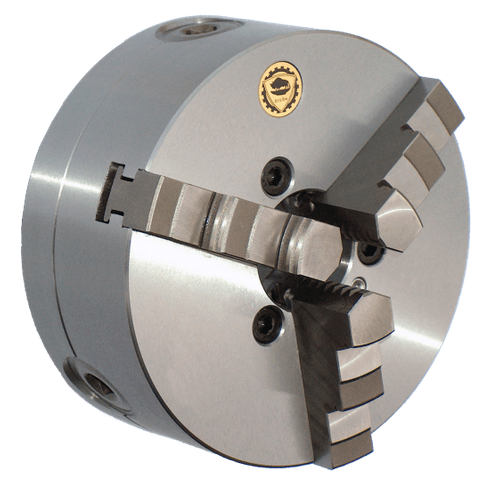

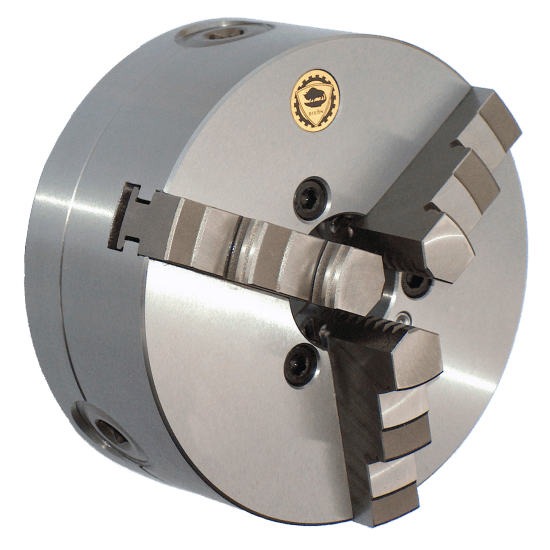

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 10 inch 7-829-1000

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 10 inch 7-829-1000
Item# 7-829-1000
$1,284.74
Availability: In Stock

Product Description

BISON-BIAL Precision Forged Steel

3-Jaw Scroll Chuck with Two Sets of Hard Solid Jaws

Each chuck is provided with:

1 Set of hard solid ID jaws

1 Set of hard solid OD jaws

1 Chuck wrench

1 Set of mounting bolts

1 Hex key

TECHNICAL DATA

Chuck Diameter D in 10

Chuck Body Forged Steel

Hole Diameter d in 2.9921

Max Speed RPM 3500

Weight lb 55

F in 8.8189

E in 7.874

C in 0.1969

H in 3.543

h in 2.087

Adapter Mounting Bolts, Thread M M12x1.75

Adapter Mounting Bolts, L 1.18

Adapter Mounting Bolts, Qty 6

Clamping Range d1 (min-max) .197 - 4.65

Clamping Range d2 (min-max) 3.03 - 7.40

Clamping Range d3 (min-max) 6.30 - 9.84

Clamping Range d4 (min-max) 2.44 - 6.85

Clamping Range d5 (min-max) 5.71 - 10.08
