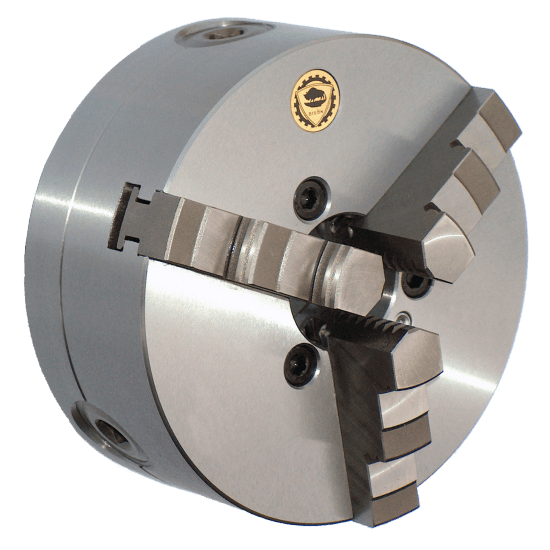

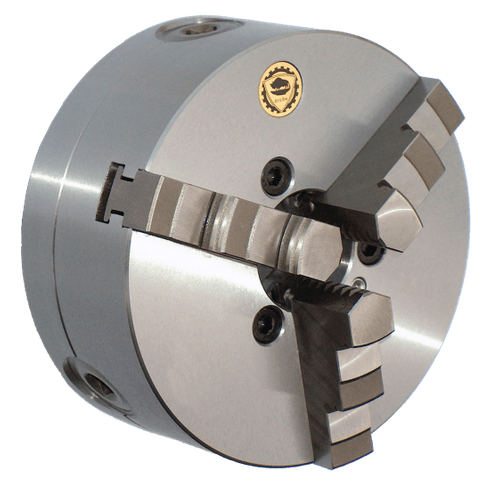

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 8 inch 7-829-0800

BISON-BIAL Precision Forged Steel

3-Jaw Scroll Chuck with Two Sets of Hard Solid Jaws



Each chuck is provided with:

1 Set of hard solid ID jaws

1 Set of hard solid OD jaws

1 Chuck wrench

1 Set of mounting bolts

1 Hex key

TECHNICAL DATA

Chuck Diameter D in 8

Chuck Body Forged Steel

Hole Diameter d in 2.1654

Max Speed RPM 4000

Weight lb 39

F in 6.9291

E in 6.2992

C in 0.1575

H in 3.15

h in 1.772

Adapter Mounting Bolts, Thread M M10x1.5

Adapter Mounting Bolts, L 0.98

Adapter Mounting Bolts, Qty 6

Clamping Range d1 (min-max) .157 - 3.54

Clamping Range d2 (min-max) 2.36 - 5.71

Clamping Range d3 (min-max) 5.12 - 7.87

Clamping Range d4 (min-max) 2.05 - 5.31

Clamping Range d5 (min-max) 4.72 - 7.98
