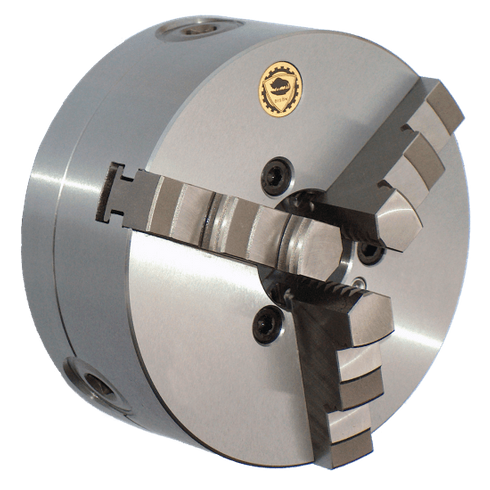

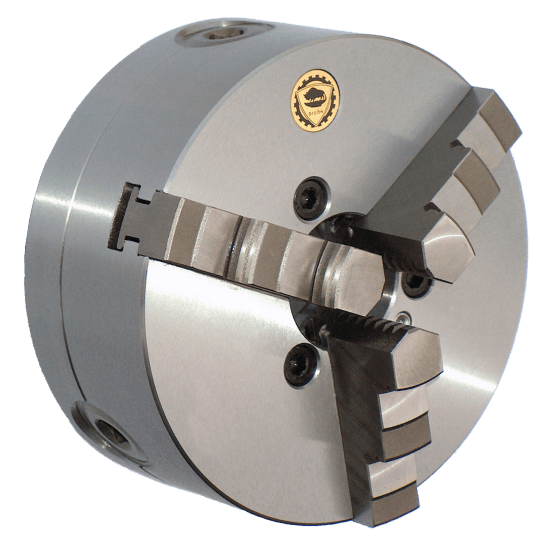

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 4 inch 7-829-0400

BISON 3-Jaw (Solid) Scroll Chuck Forged Steel Body Plain Back 4 inch 7-829-0400
Item# 7-829-0400
$574.74
Availability: In Stock

Product Description

BISON-BIAL Precision Forged Steel

3-Jaw Scroll Chuck with Two Sets of Hard Solid Jaws

Each chuck is provided with:

1 Set of hard solid ID jaws

1 Set of hard solid OD jaws

1 Chuck wrench

1 Set of mounting bolts

1 Hex key

TECHNICAL DATA

Chuck Diameter D in 4

Chuck Body Forged Steel

Hole Diameter d in 0.7874

Max Speed RPM 6300

Weight lb 6.17

F in 3.2677

E in 2.7559

C in 0.1181

H in 1.969

Adapter Mounting Bolts, Thread M M8x1.25

Adapter Mounting Bolts, L 0.98

Adapter Mounting Bolts, Qty 3

Clamping Range d1 (min-max) .118 - 1.30

Clamping Range d2 (min-max) 1.26 - 2.44

Clamping Range d3 (min-max) 2.44 - 3.27

Clamping Range d4 (min-max) .98 - 2.20

Clamping Range d5 (min-max) 2.20 - 3.43
