Product Description
Part number: 7-640-1030
Size: 250 mm (10")
Number Of Jaws: 3
Type Of Jaws: 2-Piece Jaws
Style Of Jaws: Hard 2-piece Jaws
Body Material: Cast Iron
Precision Class: Standard Accuracy Chuck
Through Hole: No
Self-Centering
Sealed: Yes
Made In Poland
Feautures:

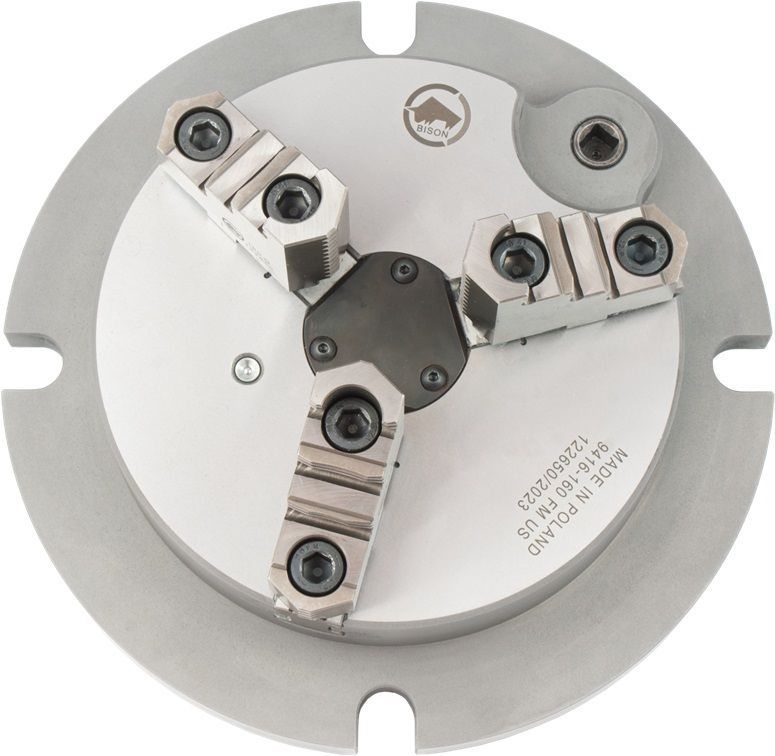

• A milling fixture in the form of a scroll lathe chuck with 2-piece jaws, integrated with the base.
• Depending on the adaptation, it can be used on milling machine tables, T-towers, drill tables, or surface grinders.
• It has a mechanism drive from the front of the fixture, you can use a standard wrench with a spring or a ratchet knob with a cap.
• The fixture is sealed against chips, the center by a cover, and the guides by extra teeth on the jaw.
• It has two locating keys and 4 recesses for fastening screws to be fixed to the table/tower/pallet. It is possible to attach it by the flange of the fixture with toe clamps to the machine table.
• The fixture is low profile, which is an advantage for machine tools with a short Z-axis travel, because it does not limit the machine’s movements like a chuck with a base.
• When the profile is as low as possible, standard 3200 soft jaw can be used and shaped accordingly
