R15 VDI Live Tooling Radial Forward Head IT Duplomatic LH 40MM SH ER32 FL40IT3285

R15 VDI Live Tooling Radial Drilling Milling Forward Head IT Duplomatic LH 40MM SH ER32 FL40IT3285 R1540IL1







AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for your SHOP!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

R15: Radial Drilling/Milling Forward Head

R15 Radial Drilling & Milling Forward Head

Spur Coupling-IT (Duplomatic Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT), "*2": Double Speed (DS)



Main Features

To be used for collet DIN6499

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

External coolant supply

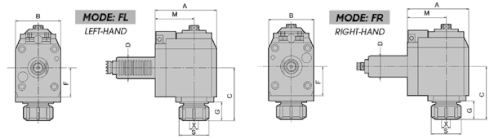

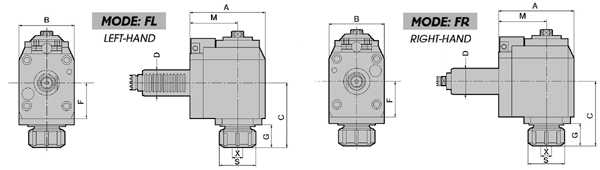

Specifications

Part Number :FL40IT3285

D DIN69880 40

X Capacity 2-20/ER32

S 50

Max rpm 5000

i 1:1

A 119

B 80

C 71

F 40

G 23

M 85

Old# Right-Hand R1540IR2

Old# Left-Hand R1540IL2
