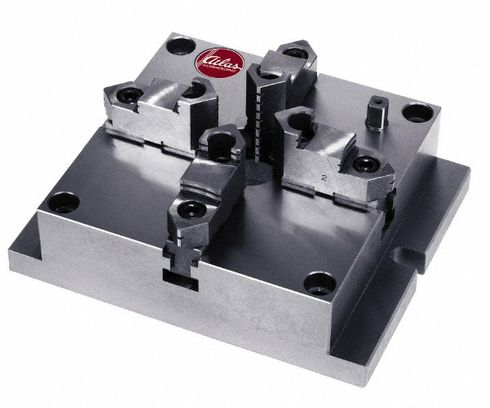

Super Thin Low Profile Square Chucks
Series MCA
Universal scroll chuck design
End-surface clamping design enables fast efficient
mounting of several chucks to a worktable
Super thin design allows greater Z-axis machining
Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks Milled key-slots on the base plate allows accurate quick changing of the chucks
Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
American Standard, hard top and master jaws
One year warranty
Chuck Diameter (Inch) 6
Minimum External Chucking Diameter (Decimal Inch) 0.1600
Maximum External Chucking Diameter (Decimal Inch) 5.0400
Minimum Internal Chucking Diameter (Decimal Inch) 2.1700
Maximum Internal Chucking Diameter (Decimal Inch) 5.0400
Through Hole Size (Decimal Inch) 1.5700
Base Width/Diameter (Decimal Inch) 6.5000
Overall Height (Decimal Inch) 2.2400
Bolt Hole Spacing (Decimal Inch) 5.6700
Base Length (Decimal Inch) 8.4600
