Product Description

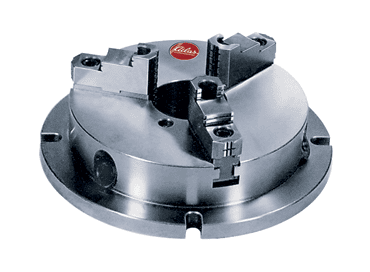

NBK Super Thin Round Chuck
The Ultimate Low Profile 3-Jaw Universal Chuck
Three operating pinions positioned at a 45° angle for easier operation
Sizes available: 6, 8, 10 and 12 inch diameter
Easy installation with flange type mounting
Accurate - .001" repetability on duplicate parts using the nominated pinion
Ideal for Drill Presses, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones and Grinding Machines
American Standard hard top and master jaws
1 Year Warranty
TECHNICAL SPECIFICATIONS
Brand Name PBA
Chuck Size 6
Gripping Cap. External Min. .28 / Max 2.75
Gripping Cap. Internal Min. 1.90 / Max. 5.50
Hole Size 1.760
Number of Jaws 3
Trade Name Atlas
Type NBK Super Thin Round Chuck
Weight 27 lbs
The Ultimate Low Profile 3-Jaw Universal Chuck
Three operating pinions positioned at a 45° angle for easier operation
Sizes available: 6, 8, 10 and 12 inch diameter
Easy installation with flange type mounting
Accurate - .001" repetability on duplicate parts using the nominated pinion
Ideal for Drill Presses, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones and Grinding Machines
American Standard hard top and master jaws
1 Year Warranty
TECHNICAL SPECIFICATIONS
Brand Name PBA
Chuck Size 6
Gripping Cap. External Min. .28 / Max 2.75
Gripping Cap. Internal Min. 1.90 / Max. 5.50
Hole Size 1.760
Number of Jaws 3
Trade Name Atlas
Type NBK Super Thin Round Chuck
Weight 27 lbs
