Product Description

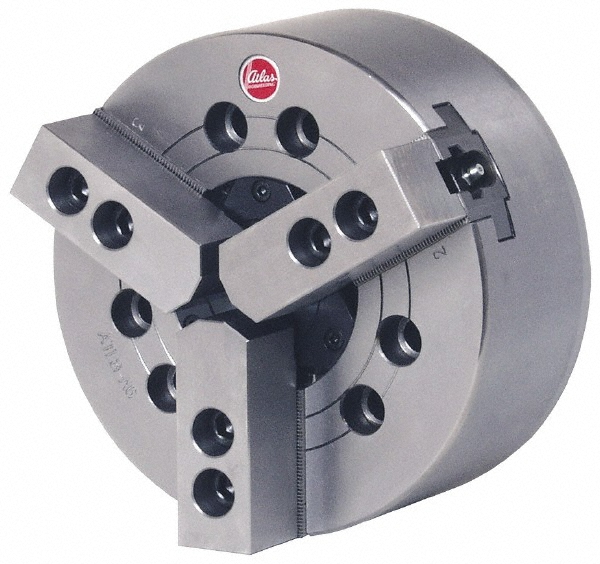

ATL Series 3 Jaw Power Chucks 5" thru 24" Direct replacement chucks for Kitagawa B200 Series
Easy instal
Interchangeable Top Tooling 1.5mm x 60° Serrations up to 18" sizes, 3mm x 60° Serrations 20" & 24" sizes
High speed
Full 2 year warranty parts and labor
Hardened jaw ways, master jaws and internal parts
Large thru-holes, plus Quick Change cover plate for closed center applications
Chuck accuracy plus/minus .0005” repeatability
Great price and value
Let's get your CNC, UP and TURNING TODAY with an ATLAS POWER CHUCK. ajaxtoolsupply.com Your one stop SHOP for Chucks and Jaws. Let Ajax put Workholding to Work for YOUR SHOP.
Ajax Sales and Service 1 (800)543-5998
Model ATL8-A6
Chuck Actuation Drawbar
Operation Hydraulic
Through Hole (in) 2.07
Plunger Stroke (in) 0.63
JawStroke (Dia. in) 0.2913
Max. Pull Force (lbf) 7830
Max. Gripping Force (lbf) 19970
Max. Speed (rpm) 5000
Weight (lbs) 55
Moment of Inertia I (kg - m2) 0.184
Gripping O. D. Range (in) .79-6.16
