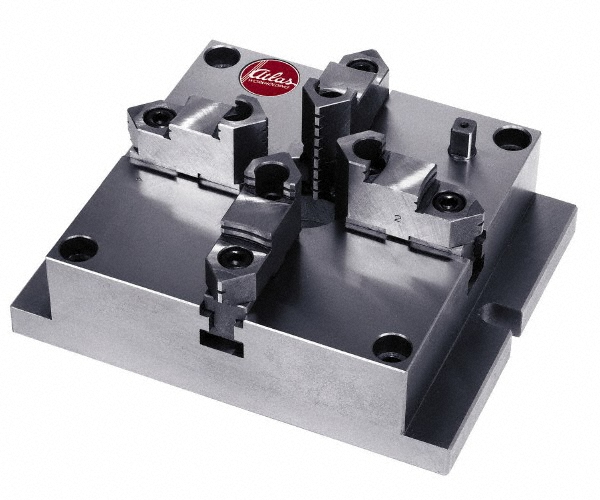

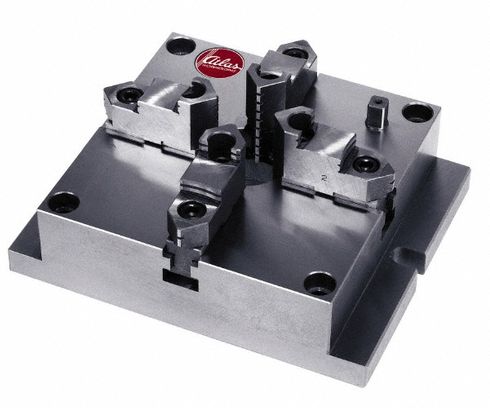

Super Thin Low Profile Square Chucks
Series MCA
Universal scroll chuck design
End-surface clamping design enables fast efficient mounting of several chucks to a worktable
Super thin design allows greater Z-axis machining Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks
Milled key-slots on the base plate allows accurate quick changing of the chucks
Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
American Standard, hard top and master jaws
One year warranty
Chuck Diameter (Inch) 12
Minimum External Chucking Diameter (Decimal Inch) 0.3900
Maximum External Chucking Diameter (Decimal Inch) 10.4500
Minimum Internal Chucking Diameter (Decimal Inch) 3.5400
Maximum Internal Chucking Diameter (Decimal Inch) 10.4500
Through Hole Size (Decimal Inch) 3.9400
Base Width/Diameter (Decimal Inch) 12.2000
Overall Height (Decimal Inch) 3.3500
Bolt Hole Spacing (Decimal Inch) 10.7900
Base Length (Decimal Inch) 14.9600
