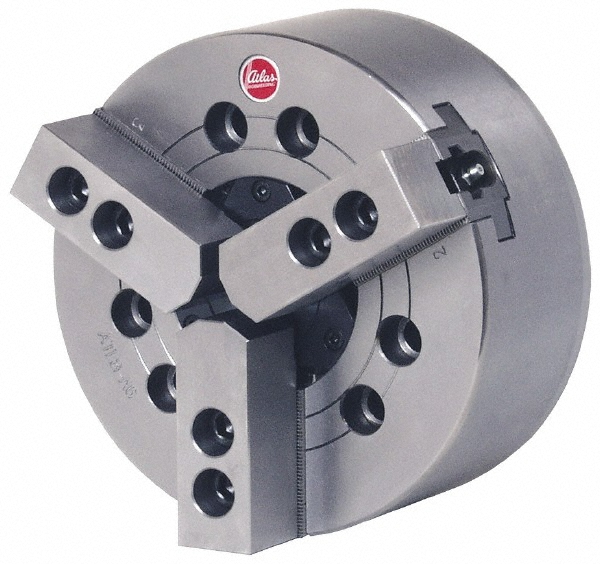

Atlas Workholding 12" A2-6 3 Jaw CNC Hydraulic Power Lathe Chuck ATL12-A6

Atlas Workholding 12" A2-6 3 Jaw CNC Hydraulic Power Lathe Chuck ATL12-A6

Item# ATL12-A6
Regular price: $4,199.94
Sale price: $3,149.00
Availability: In Stock
Atlas Workholding 12" A2-6 3 Jaw CNC Hydraulic Power Lathe Chuck ATL12-A6

Product Description

ATL Series 3 Jaw Power Chucks 5" thru 24" Direct replacement chucks for Kitagawa B200 Series

Easy instal

Interchangeable Top Tooling 1.5mm x 60° Serrations up to 18" sizes, 3mm x 60° Serrations 20" & 24" sizes

High speed

Full 2 year warranty parts and labor

Hardened jaw ways, master jaws and internal parts

Large thru-holes, plus Quick Change cover plate for closed center applications

Chuck accuracy plus/minus .0005” repeatability

Great price and value

Let's get your CNC, UP and TURNING TODAY with an ATLAS POWER CHUCK. ajaxtoolsupply.com Your one stop SHOP for Chucks and Jaws. Let Ajax put Workholding to Work for YOUR SHOP.

Ajax Sales and Service 1 (800)543-5998



Model ATL12-A6

Chuck Actuation Drawbar

Operation Hydraulic

Through Hole (in) 3.58

Plunger Stroke (in) 0.905

JawStroke (Dia. in) 0.4173

Max. Pull Force (lbf) 12790

Max. Gripping Force (lbf) 32978

Max. Speed (rpm) 3300

Weight (lbs) 138

Moment of Inertia I (kg - m2) 0.809

Gripping O. D. Range (in) 1.18-10.0
