Product Description

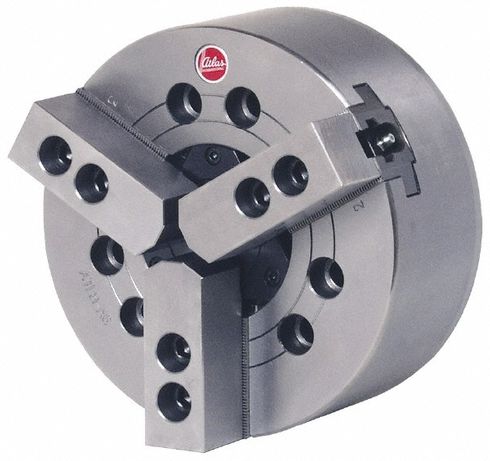

ATL Series 3 Jaw Power Chucks 5" thru 24" Direct replacement chucks for Kitagawa B200 Series
Easy instal
Interchangeable Top Tooling 1.5mm x 60° Serrations up to 18" sizes, 3mm x 60° Serrations 20" & 24" sizes
High speed
Full 2 year warranty parts and labor
Hardened jaw ways, master jaws and internal parts
Large thru-holes, plus Quick Change cover plate for closed center applications
Chuck accuracy plus/minus .0005” repeatability
Great price and value
Let's get your CNC, UP and TURNING TODAY with an ATLAS POWER CHUCK. ajaxtoolsupply.com Your one stop SHOP for Chucks and Jaws. Let Ajax put Workholding to Work for YOUR SHOP.
Ajax Sales and Service 1 (800)543-5998
Model ATL10-A8
Chuck Actuation Drawbar
Operation Hydraulic
Through Hole (in) 2.95
Plunger Stroke (in) 0.748
JawStroke (Dia. in) 0.3464
Max. Pull Force (lbf) 9650
Max. Gripping Force (lbf) 24902
Max. Speed (rpm) 4200
Weight (lbs) 84
Moment of Inertia I (kg - m2) 0.34
Gripping O. D. Range (in) .98-8.0
