Product Description

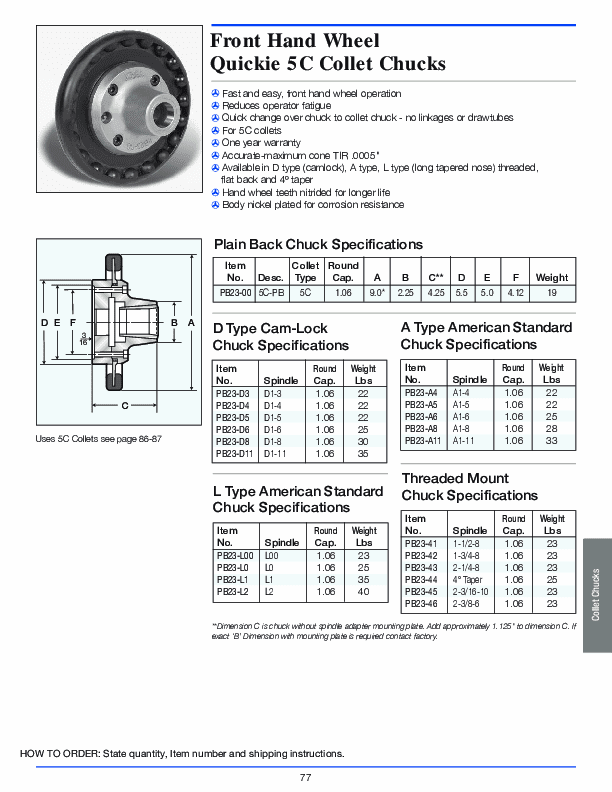

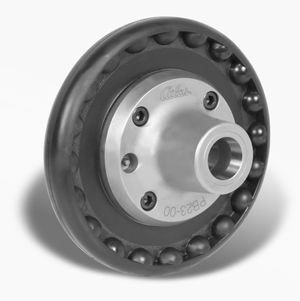

Atlas Front Mount Hand Wheel Quickie 5C Collet Chucks
Fast and easy, hand wheel operation
Reduces operator fatigue
Quick Change over Collet Chuck – No linkages or drawtubes
For 5C collets
One year warranty
Accurate-Maximum cone TIR .0005″
Available in D type (camlock), A type, L type (long tapered nose) threaded, Flat Back and 4º taper
Hand wheel teeth nitride hardened for longer life
Body nickel plated for corrosion resistance
Fast and easy, hand wheel operation
Reduces operator fatigue
Quick Change over Collet Chuck – No linkages or drawtubes
For 5C collets
One year warranty
Accurate-Maximum cone TIR .0005″
Available in D type (camlock), A type, L type (long tapered nose) threaded, Flat Back and 4º taper
Hand wheel teeth nitride hardened for longer life
Body nickel plated for corrosion resistance
