Product Description

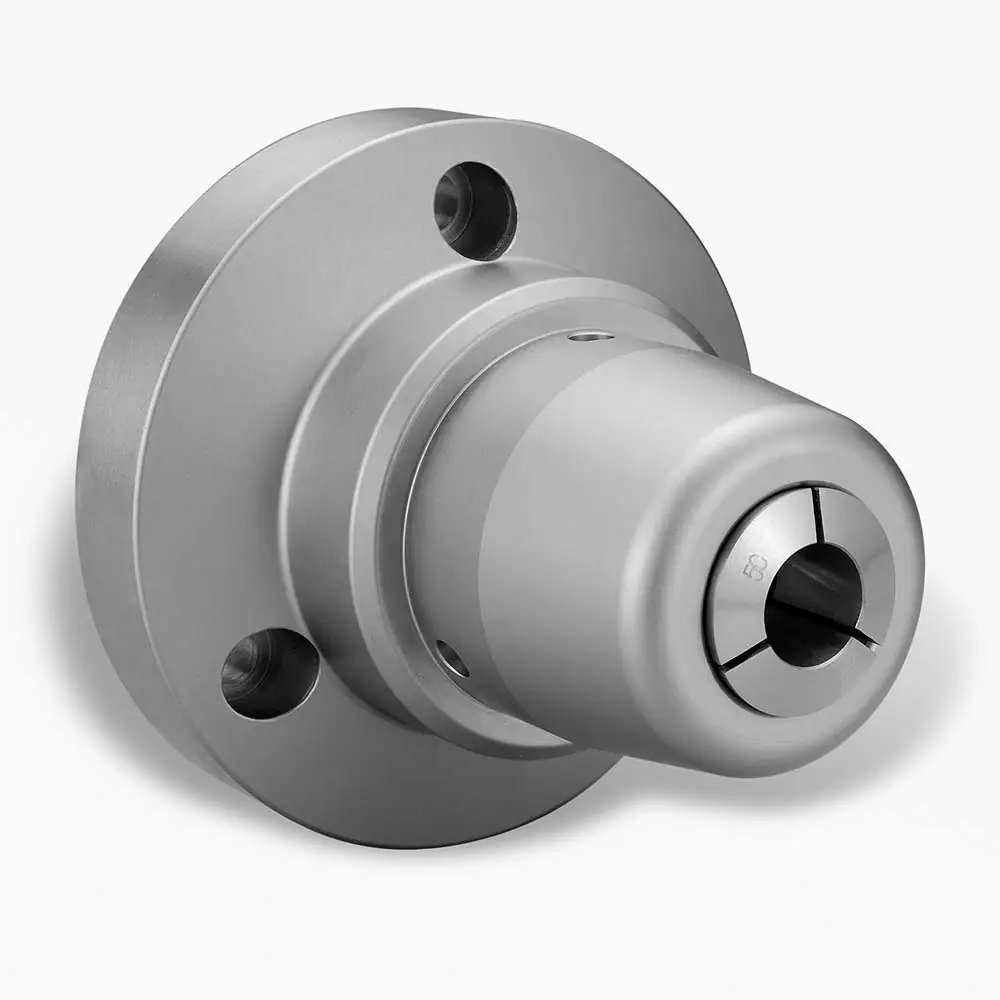

Atlas 5C Power Pull Back Collet Chuck A2-5 Mount CPB-5CA5
• Short overall length excellent for main or sub-spindle applications
• Chuck accuracy is .0003” TIR from rear mounting register and
working collet taper
• High speed up to 6000 rpm
• Body nickel plated for corrosion resistance
• Hardened and ground main body and cone
• Dead Length feature eliminates part pullback
• Straight recess or available with A type mountings. Other mounting types available on request
• In second operations work, shoulder components can be stopped against the face of the collet
• Both collet types are internally threaded in the rear end to house either a backstop or ejector if required
• Drawback Spring CRAWFORD COLLETS achieve the highest possible concentric accuracy
• Chuck includes blank connector can be machined to customers specifications at additional cost.
