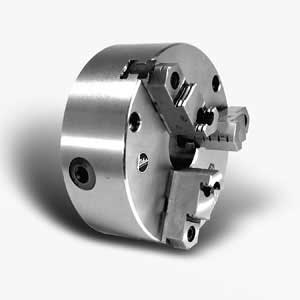

Product Description
High value
•One year warranty
•Standard chuck sizes 5" thru 25"
•Maximum .003" TIR using nominating pinion - thru 12"
•.001" repeatability using nominating pinion - thru 12"
•Two-piece American Standard tongue and groove jaws
•Hardened scroll
•Three hardened pinions
•Semi steel bodies
Dimensions for Universal Flatback Mounting Chucks with Two-piece Jaws (in/mm)
Chuck Size 20"/500
B1 19.68"/500
B3 16.53"/420
B4 8.26"/210
B5 .236"/6
B6 18.03"/458
B7 (6) M-16
B9 8.07"/205
B10 3.54"/90
B15 4.53"/115
Max RPM 800
