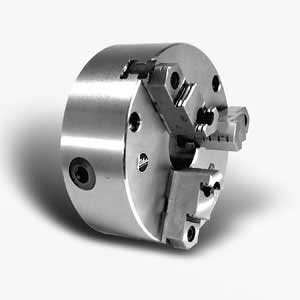

Atlas 10" Self-Centering 3 Jaw Universal Manual Lathe Chuck Plain Back 1034-2000

•High value

•One year warranty

•Standard chuck sizes 5" thru 25"

•Maximum .003" TIR using nominating pinion - thru 12"

•.001" repeatability using nominating pinion - thru 12"

•Two-piece American Standard tongue and groove jaws

•Hardened scroll

•Three hardened pinions

•Semi steel bodies



Dimensions for Universal Flatback Mounting Chucks with Two-piece Jaws (in/mm)

Chuck Size 10"/250

B1 9.84"/250

B3 7.87"/200

B4 3.15"/80

B5 .197"/5

B6 8.81"/224

B7 (6) M-12

B9 5.59"/142

B10 2.44"/62

B15 3.15"/80

Max 1600 RPM
