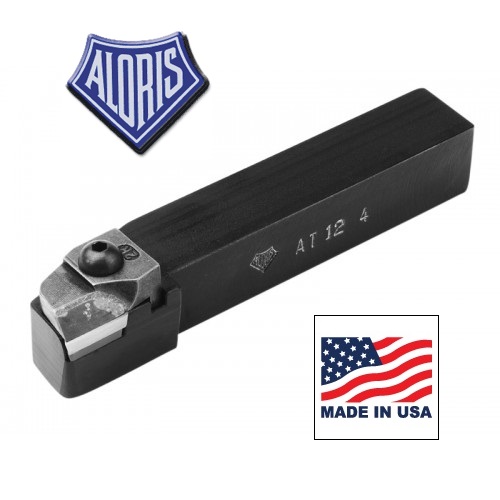

Aloris Turning Holder AT12-2

Adjustable carbide chipbreaker provides excellent chip control. Holders supplied as shown less carbide inserts. Positive rake. Designed to accept standart triangular inserts.

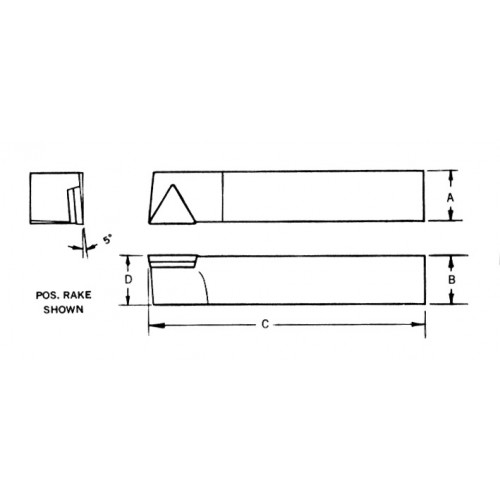

Dimensions (see image) A: 1/4"; 1/2"; 41/2"; 13/16"

Insert size: I.C. 3/8"; thickness: 1/8"

Replacement Parts: Carbide Shim: SM-41 Shim Screw: SM-41SS Carbide Chipbreaker: 1-R Chipbreaker Clamp Screw: SCR-12
