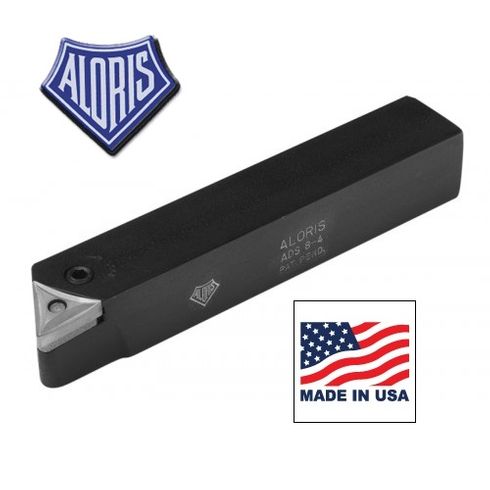

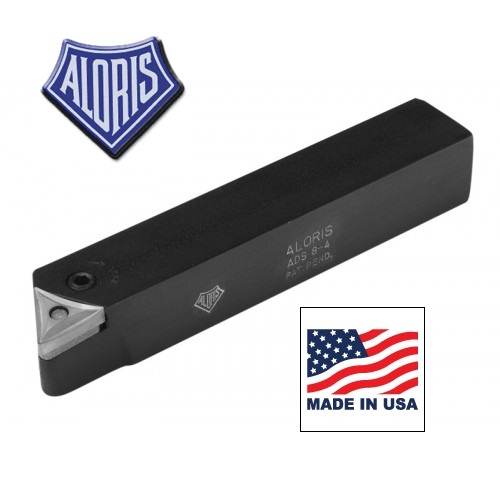

Aloris Double-Lock Tool Holder ADS10-4

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. Straight style right hand. Also available in left hand and 30° side cutting edge versions.

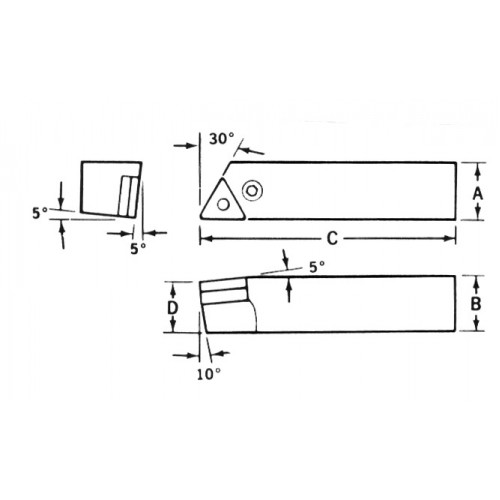

Dimensions (see image) A: 1"; B: 11/4"; C: 6"; D: 13/16"

Insert Size: I.C.: 1/2"; thickness: 3/16"

Replacement Parts: Carbide Seat ST-2 Hex Lock Pin LP-2 Lock Screw LS-2
