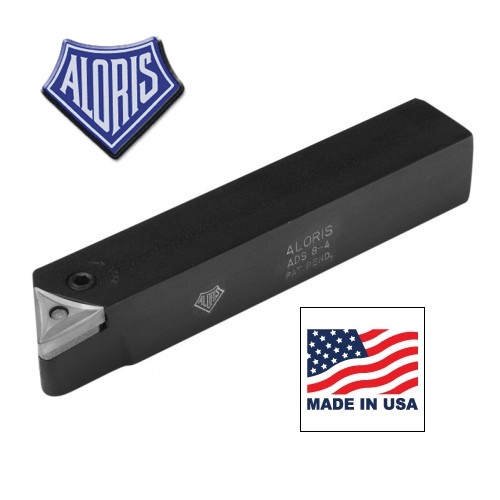

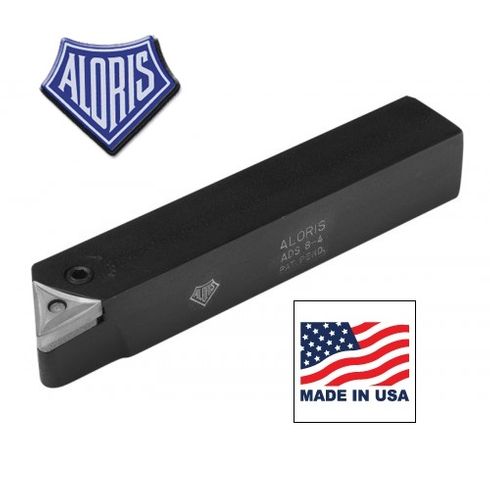

Aloris Double-Lock Tool Holder ADS12-5

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. Straight style right hand. Also available in left hand and 30° side cutting edge versions.

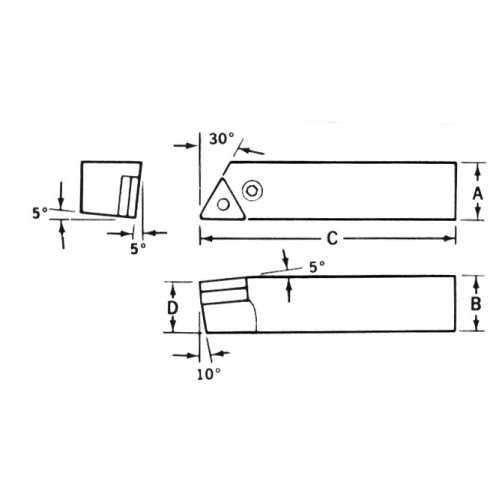

Dimensions (see image) A: 1"; B: 11/2"; C: 8"; D: 113/32"

Insert Size: I.C.: 5/8"; thickness: 1/4"

Replacement Parts: Carbide Seat ST-3 Hex Lock Pin LP-3 Lock Screw LS-3
