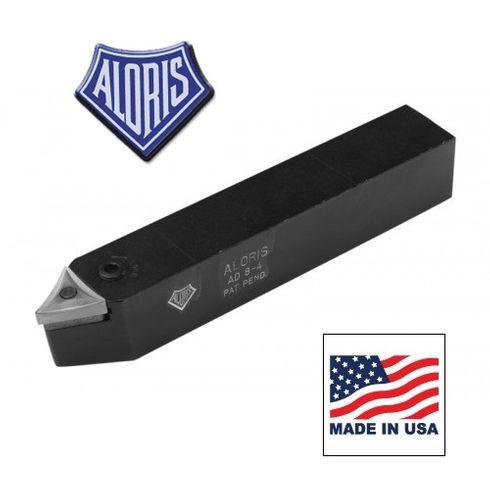

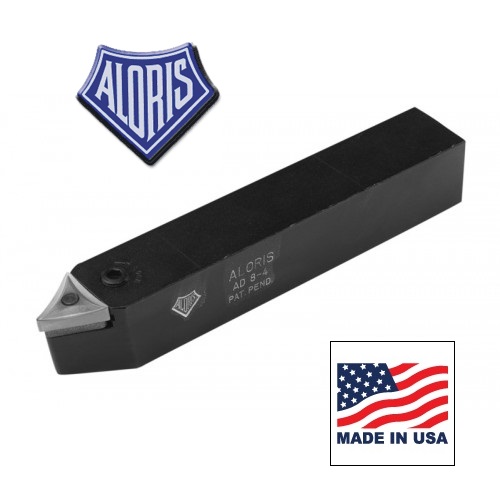

Aloris Double-Lock Tool Holder AD10-5

A unique locking device exerts a two-way force on the carbide insert: downward and tight against shoulder to assure rigid, positive seating. Designed to accept standard inserts. Also available in right and left hand versions.

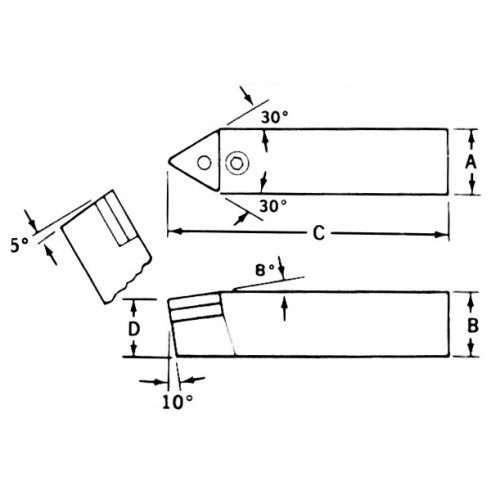

Dimensions (see image) A: 11/4"; B: 7"; C: 41/2"; D: 15/32"

Insert Size: I.C.: 5/8"; thickness: 1/4"

Replacement Parts: Carbide Seat ST-3 Hex Lock Pin LP-3 Lock Screw LS-3
