Description

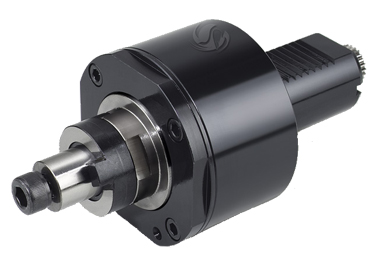

A8 Axial 5482 Cutting Head to DIN6358 (D=40, X=16)

A8 Axial Cutting Head to DIN 6358

Coupling to DIN5482 (Sauter Type)



Main Features

To be used for cutter arbor according to DIN 6358

For Various Cutters

Complete with intermediate rings and coolant pipe



Specifications

Part Number :DA40548216C

Ref# DA40-5482-CUT

D DIN- 69880 40

X Capacity DIN6358 16

S 32

Max rpm 3000

i 1:1

A 68.5

B 55

C 39

E 79

F 78

G 27

P DIN5482 B17X14

Old# A840B1
