A2 VDI Driven Toolholder Axial Sauter 5482 D/M Head w/ Collet Chuck 40mm ER32 DA40548232 A240B1

A2 VDI Driven Toolholder Axial Sauter 5482 D/M Head w/ Collet Chuck 40mm ER32 DA40548232 A240B1









AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

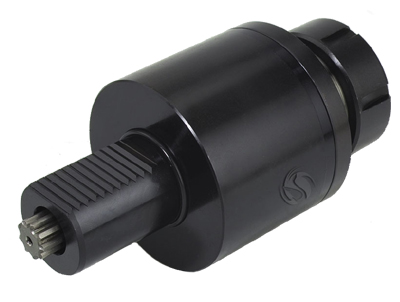

A2 Axial 5482 D/M Head w/ Collet Chk (D=40, ER32)

A2 Axial Drilling & Milling Head w/ Collet Chuck

Coupling to DIN5482 (Sauter Type)

Model# with "K": Internal Coolant (IC)



Main Features

To be used for collet DIN6499

External coolant supply

Collet is not included

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

Part Number :DA40548232

Ref# DA40-5482



Specifications

D DIN69880 40

X Capacity 2-20/ER32

S 50

Max rpm 6000

i 1:1

A 89

B 55

C 39

E 79

F 78

P DIN5482 B17X14

Old# A240B1
