Product Description
A25 VDI Live Driven Tooling Toolholder Axial MT Brauffaldi D/M Head w/ Collet Chuck 40mm SH ER32 DA40MT32 DA40MT32
AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!
Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!Ajax Industries Sales and Service 1 (800) 543-5998
AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!
Description
A25 Axial MT D/M Head w/ Collet Chk (D=40, ER32)
A25 Axial Drilling & Milling Head w/ Collet Chuck

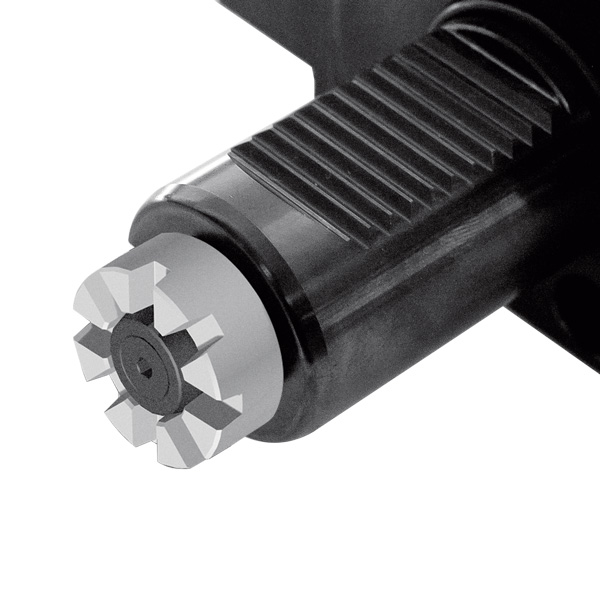

Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC)
Main Features
To be used for collet DIN6499
External coolant supply
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
Part Number :DA40MT32
Ref# DA40-MT
Specifications
D DIN69880 40
X Capacity 2-20/ER32
S 50
Max rpm 6000
i 1:1
A 89
B 55
C 39
E 79
F 78
Old# A440M1
