A25 Axial MT Brauffaldi D/M Head w/ Collet Chuck 50mm SH ER40 DA50MT40 DA50-MT

A25 VD Live Driven Tooling Toolholder Axial MT D/M Head w/ Collet Chuck 50mm SH ER40 DA50MT40 DA50-MT





AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

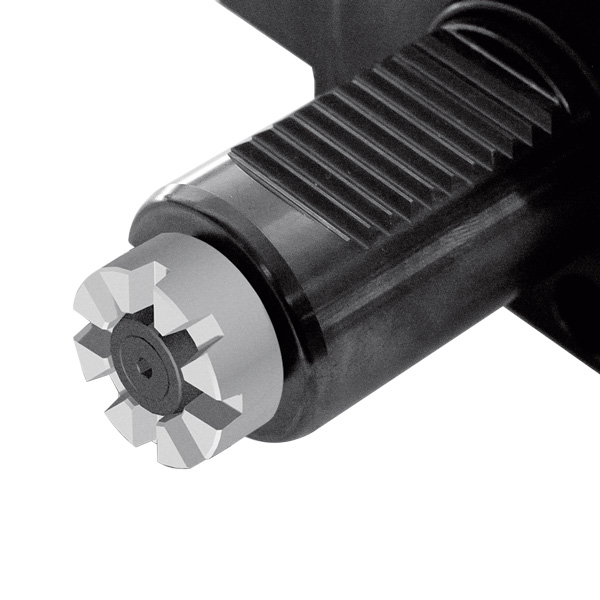

A25 Axial MT D/M Head w/ Collet Chk (D=50, ER40)

A25 Axial Drilling & Milling Head w/ Collet Chuck

Spur Coupling-MT (Brauffaldi Type)

Model# with "K": Internal Coolant (IC)



Main Features

To be used for collet DIN6499

External coolant supply

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

Part Number :DA50MT40

Ref# DA50-MT



Specifications

D DIN69880 50

X Capacity 3-26/ER40

S 63

Max rpm 6000

i 1:1

A 123

B 81.5

C 40

E 84

F 88

Old# A450M1
