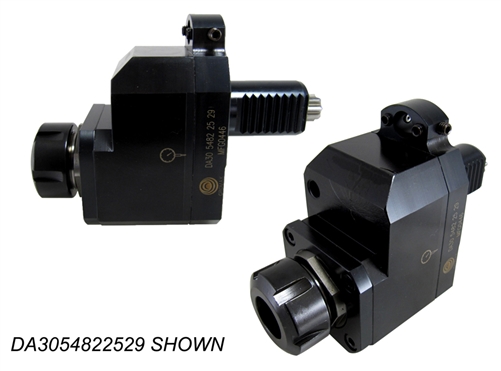

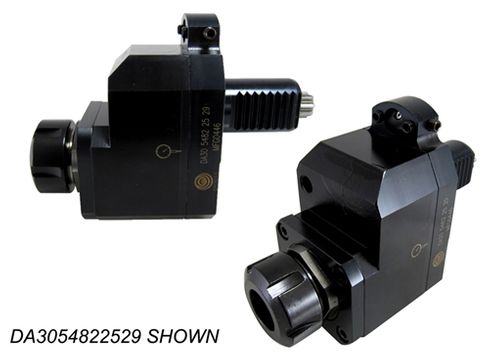

A17 VDI Live Driven Tooling Axial Sauter 5482 D/M Hd Offset w/ Collet Chuck 30mm ER25 DA3054822529

A17 VDI Live Driven Tooling Axial Sauter 5482 D/M Hd Offset w/ Collet Chuck 30mm ER25 DA3054822529



AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

A17 Axial 5482 D/M Hd Offset w/ Collet Chk (D=30, ER25)

A17 Axial Drilling & Milling Head Offset w/ collet Chuck

Coupling to DIN5482 (Sauter Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT); "*2": Double Speed (DS)



Main Features

To be used for cutter arbor according to DIN 6499

External coolant supply



Specifications

Part Number :DA3054822529

Ref# DA30-5482-OFF

D DIN69880 30

X Capacity 1-16/ER25

S 42

Max rpm 4000

i 1:1

A 100

B 29

C 60

P DIN5482 B15X12
