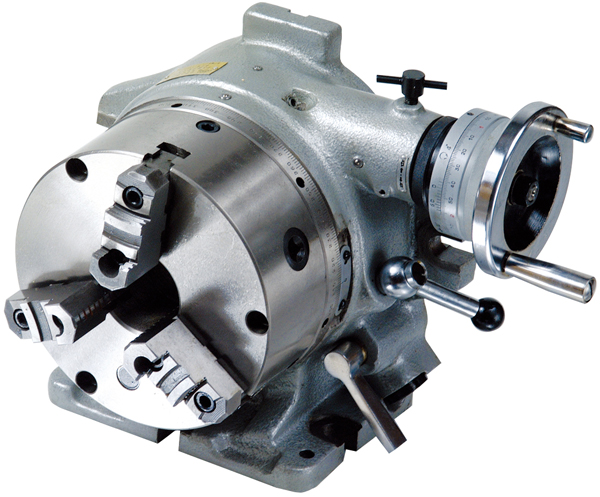

8 SUPER SPACER ROTARY INDEXING FIXTURE

Features •Designed for milling, drilling, jig boring, and many other shop applications. •Hardened and ground 24 position index plate (15°increments). •360°satin chrome graduated ring with 10 second adjustable vernier plate insures accurate readings. •Each unit is equipped with 6 masking plates for fast and simple indexing of 2, 3, 4, 6, 8 and 12 divisions. •Complete with 3-jaw chuck and faceplate.

Product Specifications





Max. Individual Spacing Error 25 seconds

Vernier Reading 10 seconds

Squareness (table base to chuck 90° 0.0008"

Base Parallelism (face to face) 0.0004"

Mounting Flange Concentricity 0.0008"

Chuck Concentricity 0.0005"
