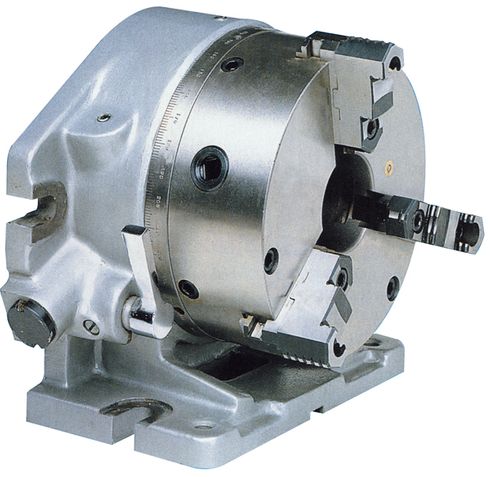

8 INCH SUPER SPACER FIXTURE
Product Description
Product Description
Features •Designed for milling, drilling, jig boring, and many other shop applications. •Hardened and ground 24 position index plate (15°increments). •360°satin chrome graduated ring with 10 second adjustable vernier plate insures accurate readings. •Each unit is equipped with 6 masking plates for fast and simple indexing of 2, 3, 4, 6, 8 and 12 divisions. •Complete with 3-jaw chuck and faceplate.
Product Specifications
Max. Individual Spacing Error 25 seconds
Vernier Reading 10 seconds
Squareness (table base to chuck 90° 0.0008"
Base Parallelism (face to face) 0.0004"
Mounting Flange Concentricity 0.0008"
Chuck Concentricity 0.0005"
Features •Designed for milling, drilling, jig boring, and many other shop applications. •Hardened and ground 24 position index plate (15°increments). •360°satin chrome graduated ring with 10 second adjustable vernier plate insures accurate readings. •Each unit is equipped with 6 masking plates for fast and simple indexing of 2, 3, 4, 6, 8 and 12 divisions. •Complete with 3-jaw chuck and faceplate.
Product Specifications
Max. Individual Spacing Error 25 seconds
Vernier Reading 10 seconds
Squareness (table base to chuck 90° 0.0008"
Base Parallelism (face to face) 0.0004"
Mounting Flange Concentricity 0.0008"
Chuck Concentricity 0.0005"
