Product Description
Features
•Provides high accuracy with little backlash for a smooth rotation.
•Features easy indexing of divisions from 2 to 50 and most numbers up to 380.
•3 dividing plates enable you to use different sizes (included).
•Adjustable tailstock allows you to work on various size workpieces (included).
•Ruggedly constructed of hardened and ground worm gear.

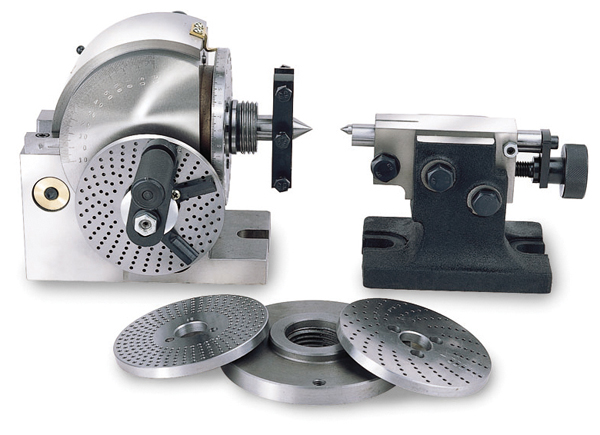

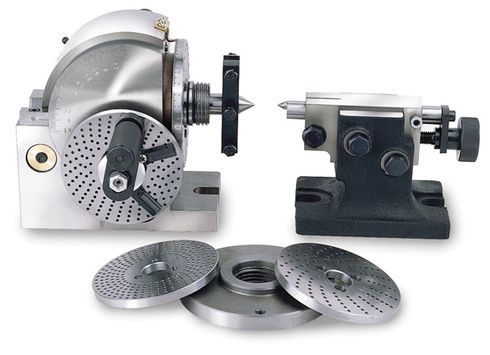

•Set also includes head, center back plate for mounting 3-jaw chuck.
Product Specifications
Swing: 7-1/2"
Center Height(h): 3-15/16"
Hole Through Spindle(dia.): 0.709"
Spindle Taper: B&S No.7
A/B/H 7.44"/5.52"/6.30"
a/b 6.30"/3.58"
Optional 3-Jaw Chuck: 4"/5"
Tailstock Dimension: (A1xb1xH1) 6.6"x3.3"x4.3"
Tailstock Dimension:a1/B1 5.13"/3.16"
Tailstock Dimension:g=g1 33/64"
