Product Description
Setup time between jobs is crucial to make any operation profitable. The fixture plate can make all the difference in getting a job done in the shortest amount of time.
Features:

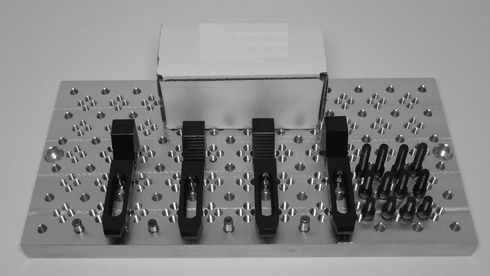

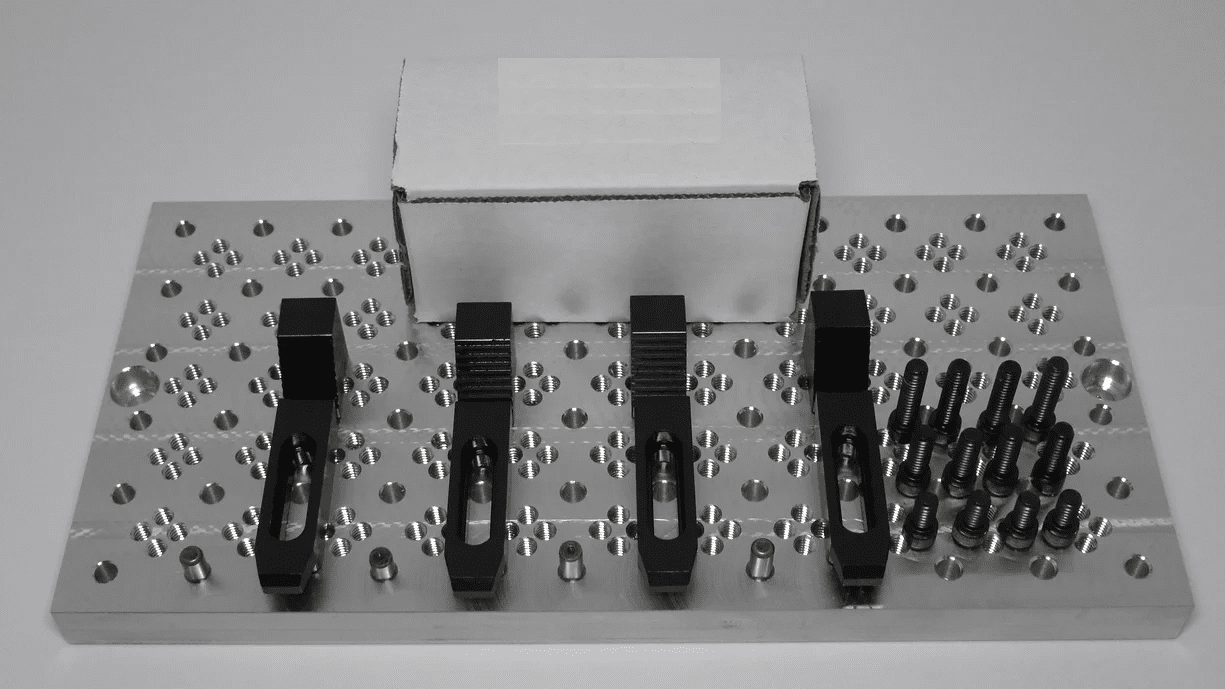

o 6" x 12" x 0.730" 6061-T6 aluminum plate
o 220 blind 1/4-20 threaded holes
o 72 1/4" holes for steel alignment pins
o Custom low-profile clamps with step blocks
o Comes with 4 clamps and 4 step blocks made out of 1018 steel
o Includes socket head cap screws and pins
What's in the kit
o (1) 6x12 aluminum fixture plate
o (4) clamps with 1" of slot travel
o (4) step blocks
o (4) 1/4-20 screws (1/2" length)
o (4) 1/4-20 screws (3/4" length)
o (4) 1/4-20 screws (1" length)
o (4) 1/4" steel dowel pins (3/4" length)
