Product Description

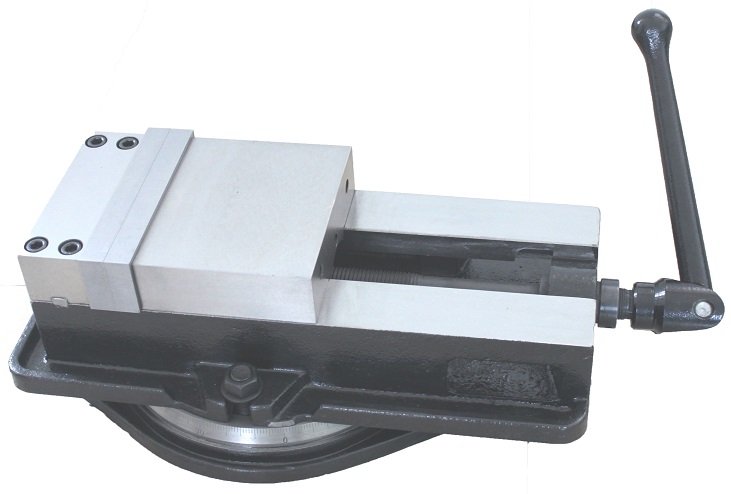

6" Kurt Style Vise OPENS 8" with Swivel Base 3900-2103
Features
•Precision ground to accuracy.
•Full 360° swivel base with graduation included.
•Used in milling, shaping and drilling machines.
•Angle tight, positive lock style-jaws interchangeable with industry standard machine vises.
•Matched pair within 0.001" on the bed height.
Product Specifications
Jaw Width 6"
W/Swivel Base Yes
A Jaw Opening 8"
A1 10.5"
A2 14.25"
A3 16"
B Jaw Height 1.932"
D OAL 19"
E Width with Base 12"
F Hight With Base 6.375"
G Center Distance Between Holes on Vise Jaws 3.875"
H .886"
T Keyway at Bottom of Vise 16mm
G.W. (LBS.) 99
We have a compleate selection of Vise Jaws and Accessories
