Product Description

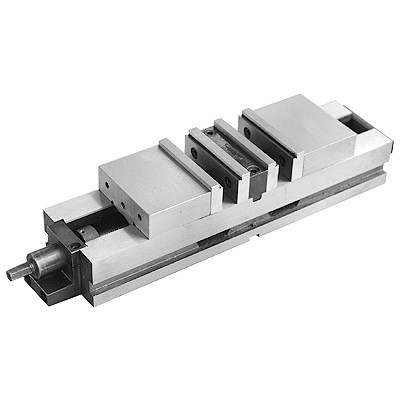

6" Kurt style Twin Lock CNC Vise 3900-0173
Features
•Precision clamping force per jaw set.
•Precision ground on all sides, can be mounted vertically or horizontally.
•Bed hardened to RC 45 or higher to resist wear.
•Reversible hardened jaw plates for standard or, stepped part holding.
•Reduces the tool changes per job by 50%.
•Uses the same machine space as conventional vises limited to half the part holding capacity.
•Top mounted center block can be removed easily for larger parts application.
Specs

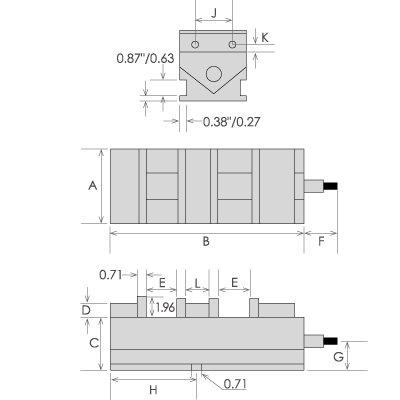

Click on thumbnail to see print
We also have a 4" available as well
6" Jaw Width
1.96" Jaw Height
A 6.27"
B Body Length of vise W/O Handle 20.8"
C 3.15"
D 1.61"
E Jaw opening 4"
F Handle from Body of vise 3.5"
G 2"
H 10"
J Vise Jaw Center Distance 3.95"
K 1.23"
L 1.01"
Mounting Slot on Sides of vise .630"
Keyway at Bottom of vise .710"
We have a complete Selection of Jaws and Accessories
