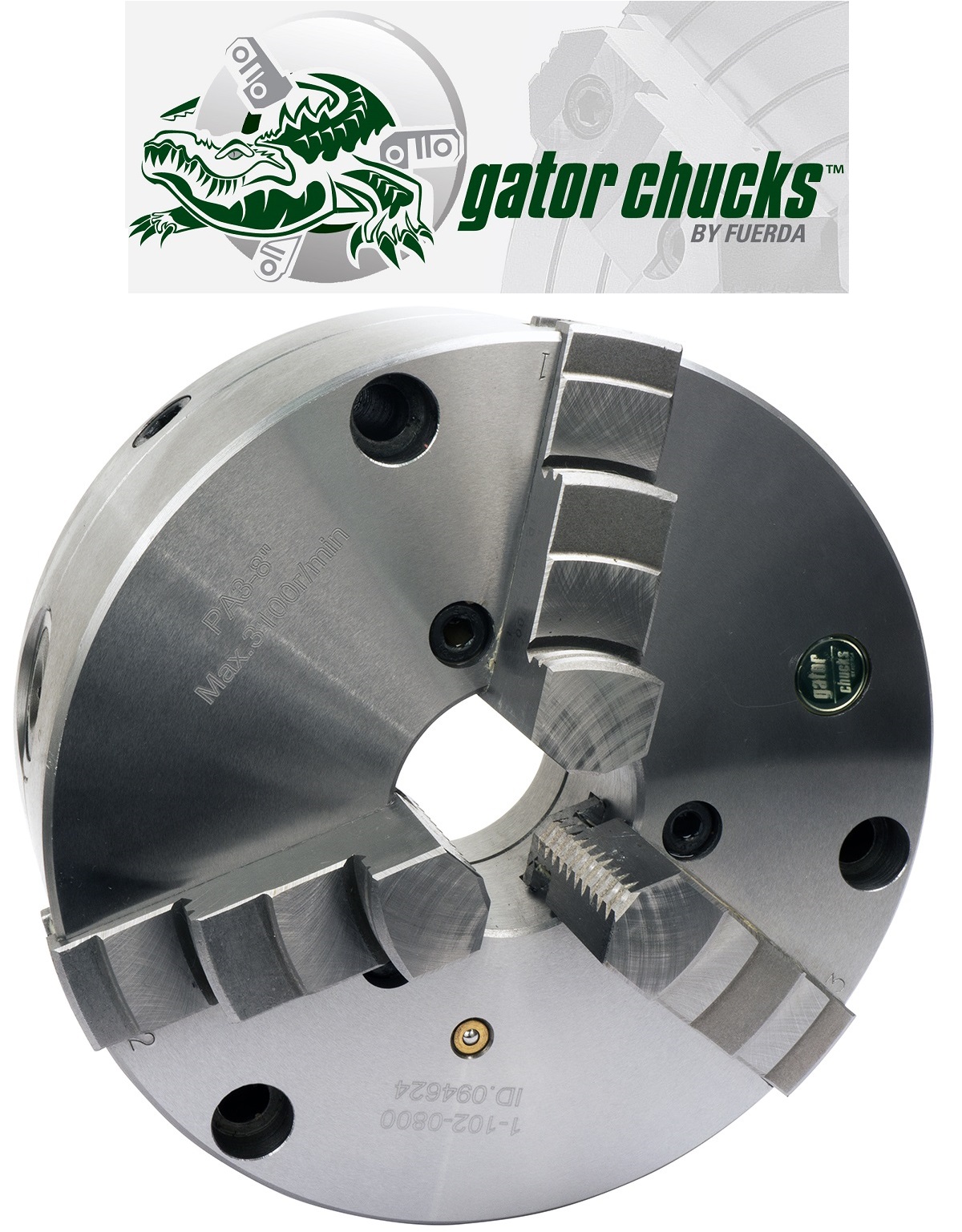

6" GATOR Lathe Chuck 3 Jaw TRU ADJUSTABLE FORGED MONO JAW

6" GATOR Lathe Chuck 3 Jaw
TRU ADJUSTABLE FORGED

TECH TRU™ Adjustable Scroll Chucks provide a much higher level of accuracy and repeatability than universal or precision chucks.

Forged Steel bodies and heat treating of critical areas give Gator chucks superior accuracy and long life.

For use on grinders, lathes, rotary tables, indexers and a variety of milling applications. 6 Jaw Chucks are ideal for thin wall pipe applications.

Easy Set Up, Easy Use!

Along with hardened steel adapters, Gator provides a full complement of spare parts, including soft solid and soft top jaws. TECH TRU™ Steel Adapters are heat treated for higher accuracy, rigidity and longer life.

Thru Hole 1.654

RPM MAX 3500

3 Jaw with Fine Adjustment

3 Pinion Design

Solid Hard Jaws

1 set OD Jaws / 1 Set ID Jaws

4" to 50" Diameter

0.0004" T.I.R

2 Year Warranty

A, D, L & Threaded Fully Finished

Steel Adapters

Produced with Certified Raw Materials

Special Solutions Available up to 50"
