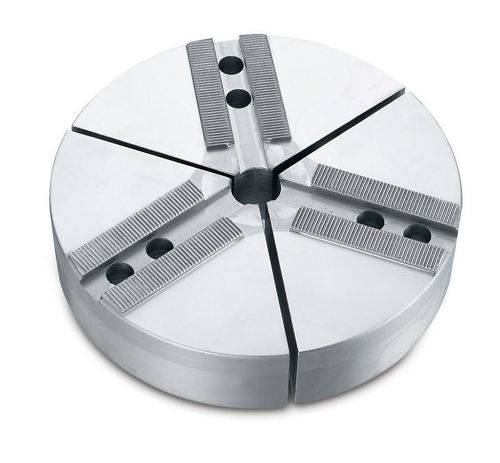

6" Aluminum Chuck Ex-Height Jaws for Kitagawa B06 B206 SETof 3

Ajax "TOTAL GRIP" Jaws are used for round and thin wall parts where pressure is applied around the entire part I.D. & O.D.

"Why WRESTLE with those Hard to Handle Chucking Problems... USE "TOTAL GRIP" Aluminum Jaws"

Made In The U.S.A

Cast Iron and Steel available

At your request an Ajax Chuck & Jaw Technician can assest in selection of the proper Jaws to fit your application. Ajax sales and service 1 (800) 543-5998

6" CNC Chuck Lathe 3 Aluminum Total Grip Jaws

Direct Replacement Jaws For Kitagawa, Howa, Matsumoto, Strong, Samchully

1.5 x 60° Serrations.
Material: 6061-T6 Aluminum Bar Stock.
For hard to hold blanks and castings and thin walled and irregular shapes.

6" Critical Dimensions: * Diameter 6" * Height 4.00" * Groove/Slot.473 * Screw Size 10mm * Center Distance Between Screw Holes .787
