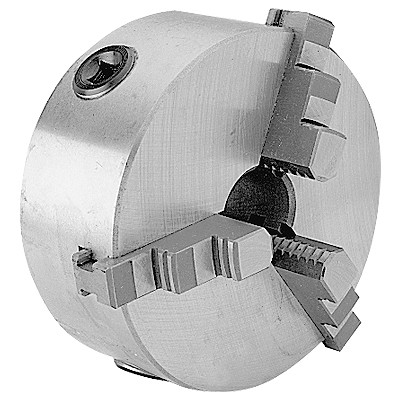

5 INCH 3-JAW LATHE CHUCK Mono Block Jaws (PLAIN BACK)
Product Description
Body made of high quality semi-steel.
Hardened and ground.
Lathe chuck wrench supplied.
2 SETS OF HARD JAWS (INTERNAL AND EXTERNAL)
1 SET OF MOUNTING SCREWS INCLUDED

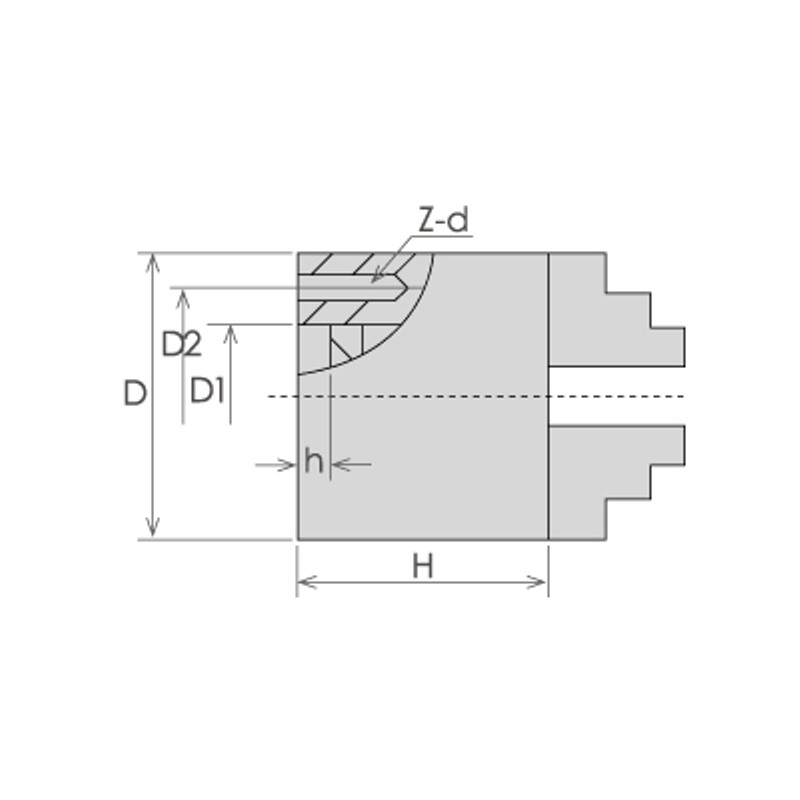

Product Specifications
Sizes D 5"
D1 3.94
(Inch) D2 4.17
h 0.14
Z-d 3-M8
Center Hole 1.181
Max. RPM 3000
T.I.R .003
Hardened and ground.
Lathe chuck wrench supplied.
2 SETS OF HARD JAWS (INTERNAL AND EXTERNAL)
1 SET OF MOUNTING SCREWS INCLUDED
Product Specifications
Sizes D 5"
D1 3.94
(Inch) D2 4.17
h 0.14
Z-d 3-M8
Center Hole 1.181
Max. RPM 3000
T.I.R .003
