Product Description

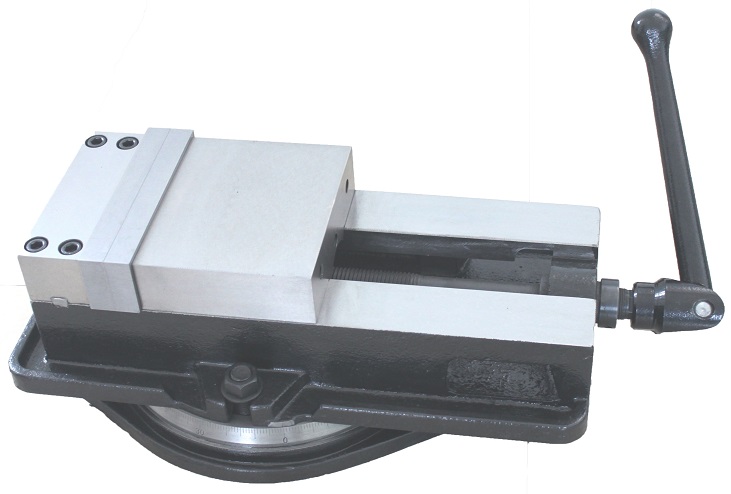

4" Kurt Style Vise with Swivel Base 3900-2102
Features
•Precision ground to accuracy.
•Full 360° swivel base with graduation included.
•Used in milling, shaping and drilling machines.
•Angle tight, positive lock style-jaws interchangeable with industry standard machine vises.
•Matched pair within 0.001" on the bed height.
Product Specifications
Jaw Width 4"
W/Swivel Base Yes
A Jaw Opening 4"
A1 6.10"
A2 8.50"
A3 10.7"
B Jaw Height 1.181"
D OAL 13.4"
E Width with Base 9"
F Hight With Base 4.724"
G Center Distance Between Holes on Vise Jaws 2.50"
H .630"
T Keyway at Bottom of Vise 14mm
G.W. (LBS.) 50
We have a compleate selection of Vise Jaws and Accessories
