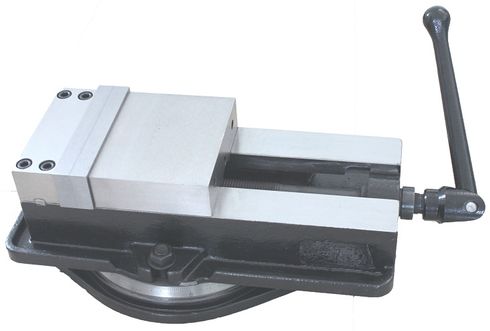

Product Description
Features
•Precision ground to accuracy.
•Full 360° swivel base with graduation included.
•Used in milling, shaping and drilling machines.
•Angle tight, positive lock style-jaws interchangeable with industry standard vises.
•Matched pair within 0.001" on the bed height.
Product Specifications
Jaw Width 3"
W/Swivel Base Yes
A Jaw Opening 3"
A1 6.10"
A2 6.30"
A3 8.5"
B Jaw Height .980"
D OAL 11"
E Width with Base 7.3"
F Hight With Base 3.980"
G Center Distance Between Holes on Vise Jaws 1.72
H .444"
T Keyway at Bottom of Vise 12mm
G.W. (LBS.) 28
We have a compleate selection of Vise Jaws and Accessories
