Product Description

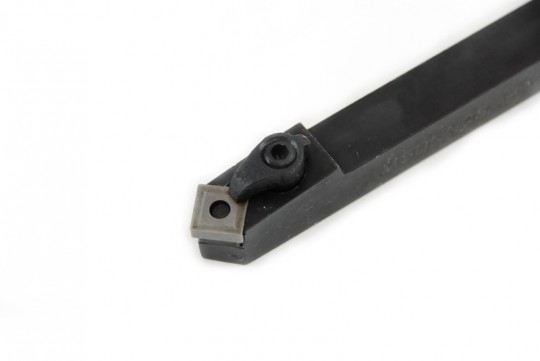

MSDNN 08-3A 1/2" Shank SNG SNMG Turning Tool Holder 404-1789
Product Spotlight
–Negative rake
–45 degree cutting edge angle
–Accepts these square insert: SNMZ, SNMA, SNMG, SNMM, SNG, SNU
Details
Shank size 1/2
overall length 4
Insert Style SNG, SNMA, SNMG, SNMM, SNMZ, SNU
Insert Size 322
Cutting direction neutral
End & Side Cutting Angle 45
Insert Inscribed Circle 3/8
Shank Size Square: 1/2"
Overall Length: 4"
Insert I.C: 3/8", T: 1/8"
Related Products
SKU 404-4501 Finger Clamp CL-6 $3.95
SKU 404-6701S SNMG 322 $4.50
SKU 404-4513 Insert Locking Screw NL-0414 $3.50
SKU 404-4527 Shim S0903B $2.95
SKU 424-1563 SNMG 322 DM YBC252 $4.15
SKU 404-4507 Clamp Screw XNS0520 $2.50
Product Spotlight
–Negative rake
–45 degree cutting edge angle
–Accepts these square insert: SNMZ, SNMA, SNMG, SNMM, SNG, SNU
Details
Shank size 1/2
overall length 4
Insert Style SNG, SNMA, SNMG, SNMM, SNMZ, SNU
Insert Size 322
Cutting direction neutral
End & Side Cutting Angle 45
Insert Inscribed Circle 3/8
Shank Size Square: 1/2"
Overall Length: 4"
Insert I.C: 3/8", T: 1/8"
