Product Description

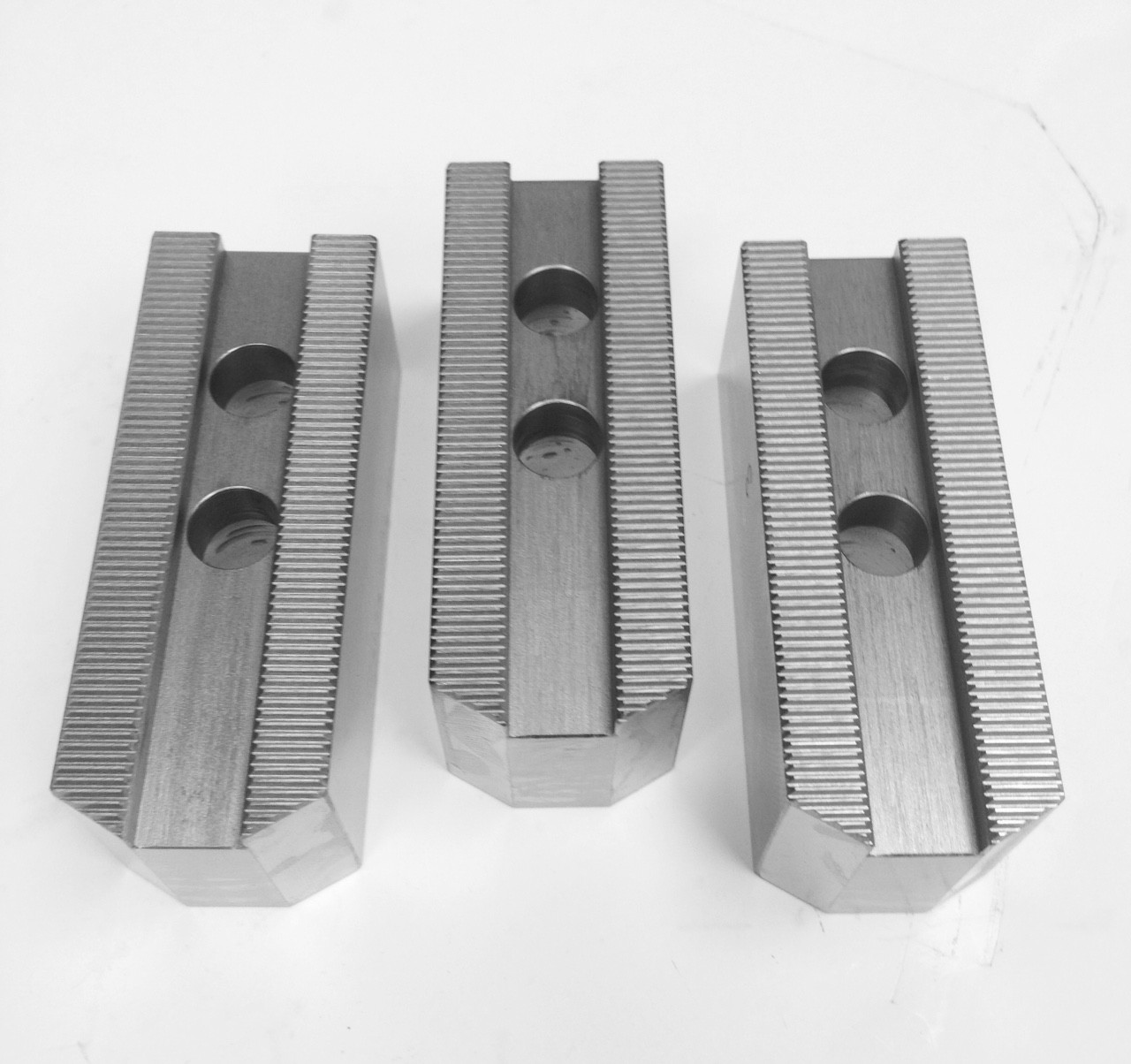

15" 1.5MM X 60 ALUMINUM Chuck Jaws for B215 Kitagawa Strong SET 3900-4776
FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
ALUMINUM
Features
•Supplies maximum concentricity on finish turning operations
•Can be bored or turned to fit workpiece
•Jaws can be hardened
•Set includes 3 pcs
Product Specifications
Chuck Size 15"
CRITICAL DIMENSIONS - Groove Width D 1.003 (25.5mm)
CRITICAL DIMENSIONS - Screw Size E 0.787 (M20)
CRITICAL DIMENSIONS - Hole Space F 1.690 (43mm)
CRITICAL DIMENSIONS - Hole to Front H 3.346
Width Inch C 2.44
Length Inch A 6.50
Height Inch B 2.44
Weight 9.9
