Product Description

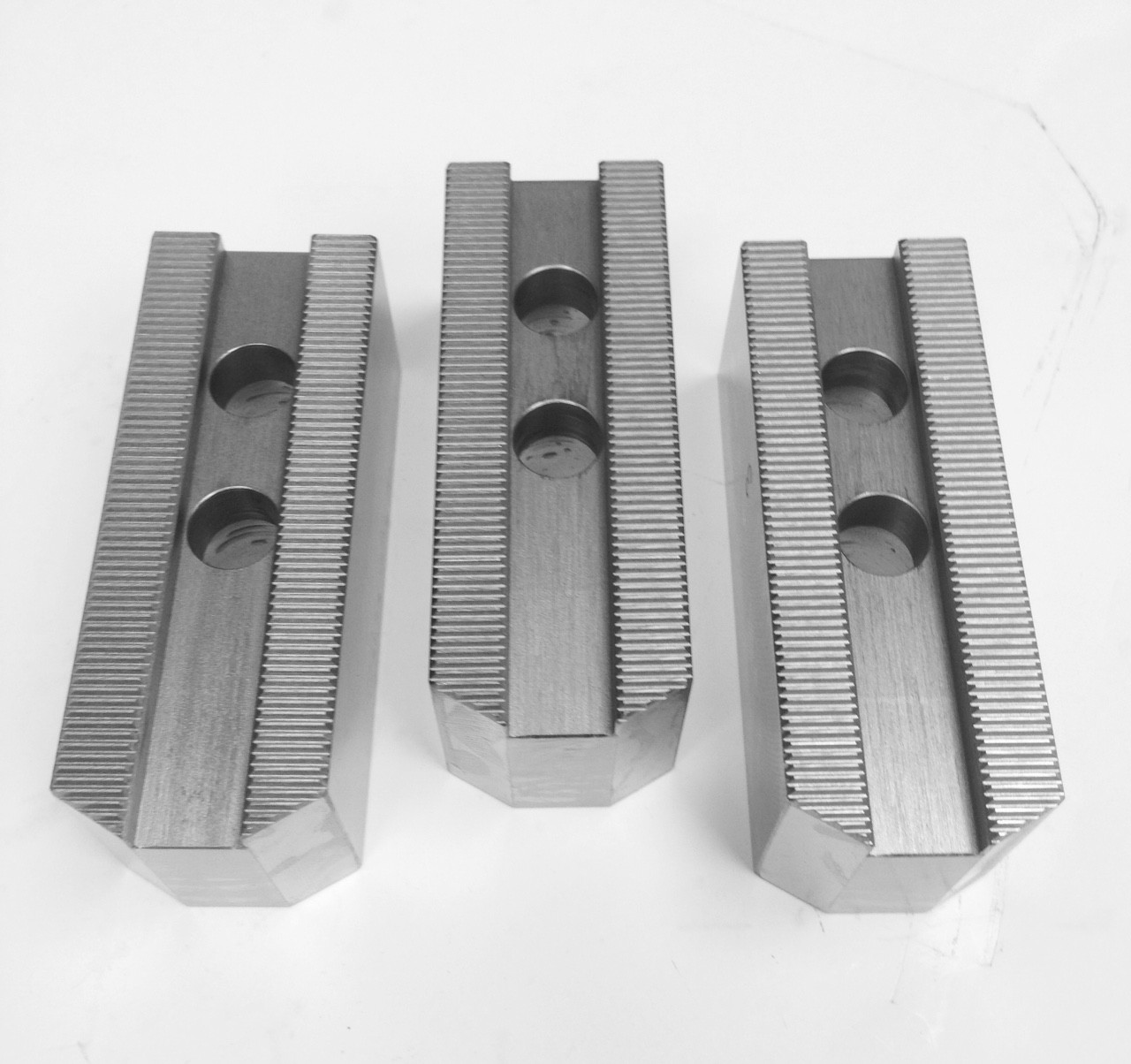

12" 1.5MM X 60 STEEL Soft Chuck Jaws for B212 Kitagawa Strong SET 3900-4693
FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
STEEL
Features
•Supplies maximum concentricity on finish turning operations
•Can be bored or turned to fit workpiece
•Jaws can be hardened
•Set includes 3 pcs
Product Specifications
Chuck Size 12"
CRITICAL DIMENSIONS - Groove Width D 0.827 (21mm)
CRITICAL DIMENSIONS - Screw Size E 0.63 (M16)
CRITICAL DIMENSIONS - Hole Space F 1.181 (30mm)
CRITICAL DIMENSIONS - Hole to Front H 2.362
Width Inch C 1.89
Length Inch A 5.08
Height Inch B 1.89
Weight 13 Lbs
FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
STEEL
Features
•Supplies maximum concentricity on finish turning operations
•Can be bored or turned to fit workpiece
•Jaws can be hardened
•Set includes 3 pcs
Product Specifications
Chuck Size 12"
CRITICAL DIMENSIONS - Groove Width D 0.827 (21mm)
CRITICAL DIMENSIONS - Screw Size E 0.63 (M16)
CRITICAL DIMENSIONS - Hole Space F 1.181 (30mm)
CRITICAL DIMENSIONS - Hole to Front H 2.362
Width Inch C 1.89
Length Inch A 5.08
Height Inch B 1.89
Weight 13 Lbs
