Product Description
Features
•Ideal for easy indexing of divisions from 2 to 50 and most numbers from 52 to 380.
•Designed for all types of gear cutting.
•Worm and spindle are hardened and ground.
•Features spiral machining capability.
•Allows you to divide in any angle by the direct, indirect or differential methods with unique dividing head.
•Ratio between worm and worm gear: 40:1
•Features threaded spindle nose and 24 hole dividing plates with easy conversion to fast, direct indexing on numbers 2, 3, 4, 6, 8, 12, and 24.

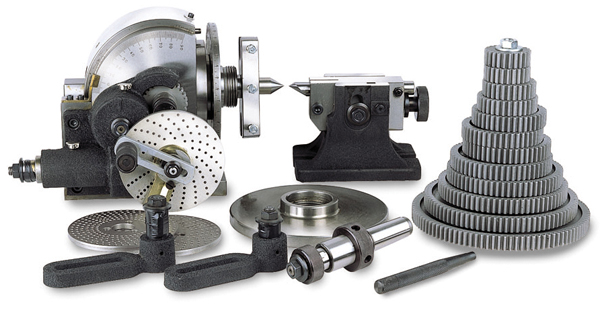

•Complete set includes Dividing Head, Adjustable Tailstock, 3 Dividing Plates, 12 gears with 2 arms for differential indexing or transmitting machine table feed to worm shaft for spiral cutting.
•MAX. VARIATION:True Running Center:0.0006",True Running of Inside Taper of Dividing Spindle Measured at Spindle Nose:0.0006",Alignment of Dividing Head & Tailstock Vertical & Horizontal Plane:0.0008"
Product Specifications
Swing: 10-1/2"
Center Height (h): 5.22"
Hole Through Spindle (dia.): 0.945"
Spindle Taper: B&S No.10
A/B/H 14.37" /10.71" /9.29"
a/b 8.39" /5.28"
Optional 3-Jaw Chuck: 6"/8"
Tailstock Dimension (A1xb1xH1): 10.0" x 4.9" x 5.5"
Tailstock Dimension a1 6.89"
Tailstock Dimension g=g1 0.63"
