Ajax "TOTAL GRIP" Jaws are used for round and thin wall parts where pressure is applied around the entire part I.D. & O.D.
"Why WRESTLE with those Hard to Handle Chucking Problems... USE "TOTAL GRIP" Aluminum Jaws"
Made In The U.S.A
Cast Iron and Steel available
At your request an Ajax Chuck & Jaw Technician can assest in selection of the proper Jaws to fit your application. Ajax sales and service 1 (800) 543-5998

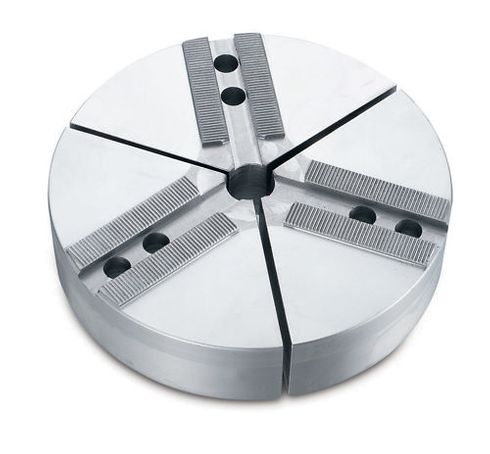

10" Lathe Chuck Total Grip Aluminum 3 Jaw Jaws
Direct Replacement Jaws For Kitagawa, Howa, Matsumoto, Strong, Samchully
1.5 x 60° Serrations.
Material: 6061-T6 Aluminum Bar Stock.
For hard to hold blanks and castings and thin walled and irregular shapes.
10" Critical Dimensions:
* Diameter 10"
* Height 4.00"
* Screw Size 12mm
* Center Distance Between Screw Holes 1.181
3 NEW 10" ALUMINUM TOTAL GRIP CHUCK JAWS
Ajax Part Number # SUR10KHTG
Selling 3 Piece Set 6061-T6 Aluminum.
Also avaiable in Cast Iron And Or Steel Upon Request.
Find All Other Size Total Grip Chuck Jaws.
6" 8" 10" 12" 15" 18"
