10" x 22" Deluxe Fixture Kit With 1/4-20 Clamp Set

10" x 22" Deluxe Fixture Kit

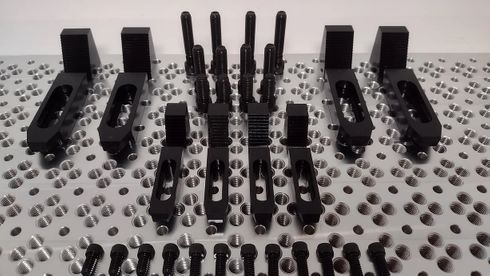

We are pleased to offer our new 10"x 22" fixture plate kit. The plate has 474 holes threaded for 3/8-16 and 144 holes for 1/4" dowel pins. The 3/8" threaded holes have been counterbored on the back to help with blowing out chips after a machining operation has been performed. The kit also comes with our in-house clamp set that provides a low-profile clamping option. The clamps and blocks are given a black oxide treatment.

Also included in this kit option are 4 thread adapters that provide extended capability by easily adapting the 1/4-20 clamp set to this plate.

Features:

10" x 22" x 0.950" aluminum plate

(474) 3/8-16 threaded holes

(144) 1/4" holes for steel alignment pins

Back side counter-bores

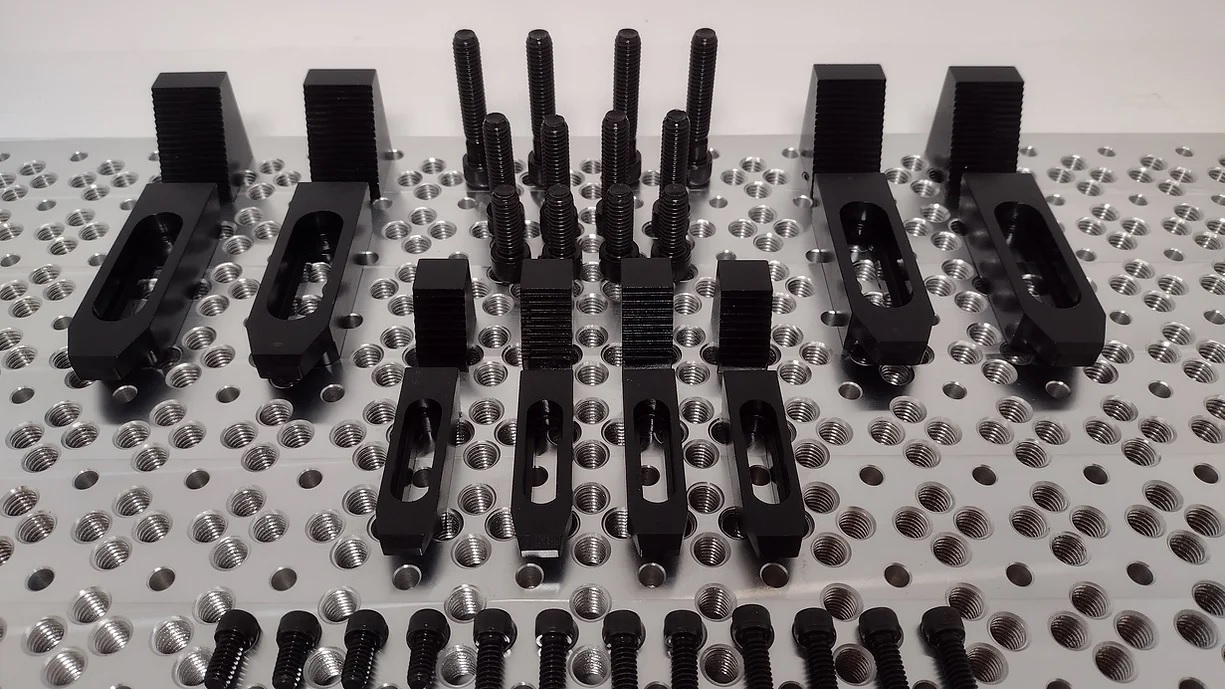

What's in the kit

(1) 10x22 aluminum fixture plate

(4) clamps with 1.5" of slot travel

(4) step blocks

(4) 3/8-16 screws (1" length)

(4) 3/8-16 screws (1.5" length)

(4) 3/8-16 (2" length)

(4) 1/4" steel dowel pins (3/4" length)

(4) 3/8-16 to 1/4-20 thread adapters

(4) clamps with 1" of slot travel

(4) step blocks

(4) 1/4-20 screws (1/2" length)

(4) 1/4-20 screws (3/4" length)

(4) 1/4-20 screws (1" length)
