Product Description

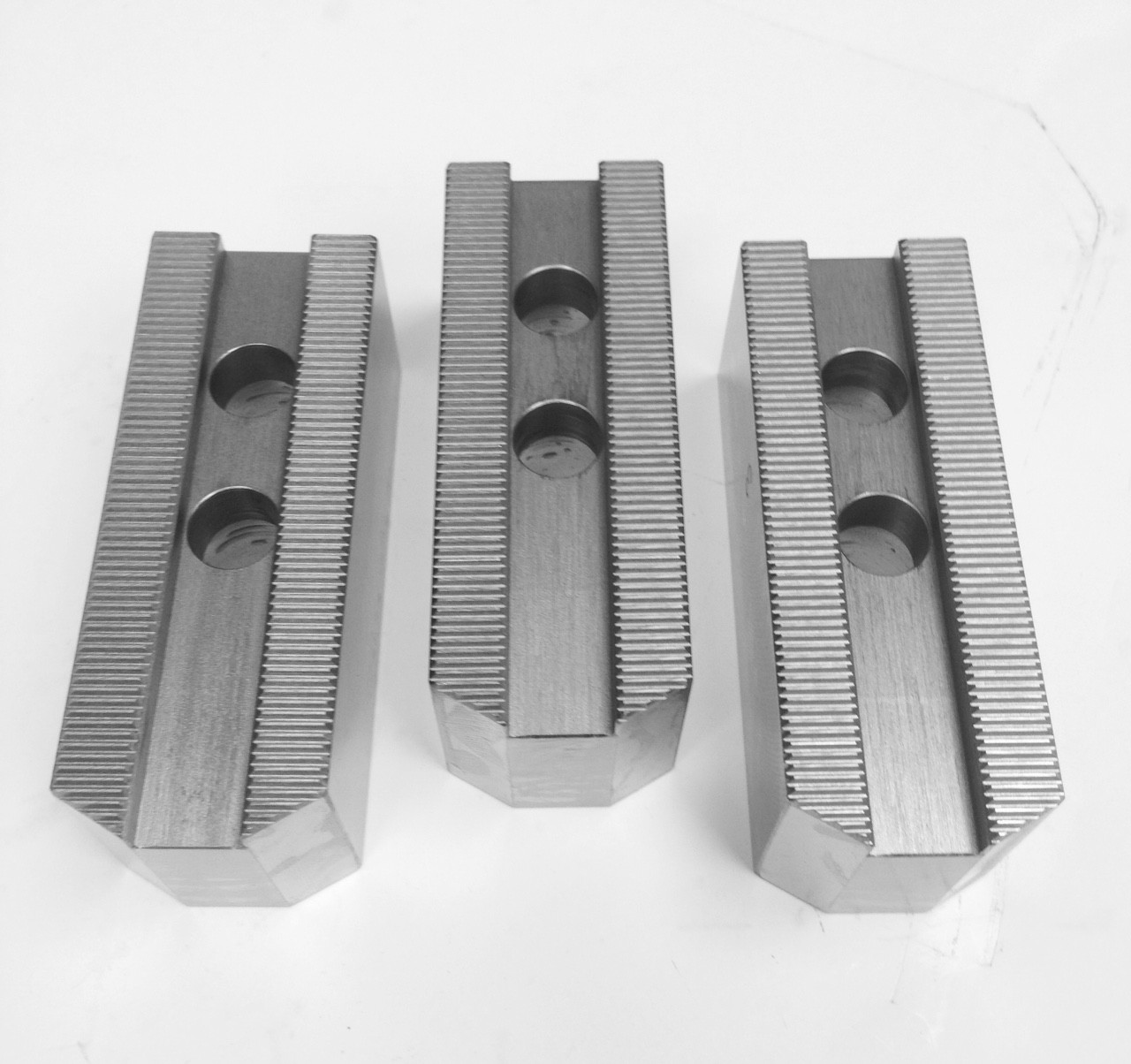

10" 1.5MM X 60 Degree Serrated 2.36 HIGH STEEL Soft Chuck Jaws for B210 Kitagawa Strong SET 3900-5665
FOR USE ON: Kitagawa, Samchully, Strong, MMK, SMW Autoblok, Howa & Hitachi-Seiki Chucks
STEEL
Features
•Extra-height jaws are suitable for longer workpiece, such as 4" length workpiece will need jaws with over 3" height which will increase the acuracy and stability of production process.
•Supplies maximum concentricity on finish turning operations.
•Price is for a set of 3 jaws.
•Jaws can be hardened.
•Can be bored or turned to fit workpiece.
Product Specifications
Chuck Size 10"
CRITICAL DIMENSIONS - Groove Width D 0.630 (16mm)
CRITICAL DIMENSIONS - Screw Size E 1/2 (M12)
CRITICAL DIMENSIONS - Hole Space F 1.181 (30mm)
CRITICAL DIMENSIONS - Hole to Front H 1.969
Jaw Width C 1.57
Jaw Length A 4.33
Jaw Height B 2.36 (60mm)
Weight 11.7
